| Mã đặt hàng | Kiểu | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Tiêu chuẩn chống nước | Chiều cao số | A | B | C |
| mm | mm | N | µm | mm | mm | mm | mm | |||
| 121524.0200 | S | 25 | 0.01 | 0.65...1.15 | 10 | IP54 | 11 | 69.3 | 79 | 49.4 |
| 121524.0500 | S | 12.5 | 0.001 | 0.65...0.90 | 3 | IP54 | 11 | 56.6 | 66.1 | 36.6 |
| 121524.0510 | S | 12.5 | 0.001 | 0.40...0.55 | 3 | IP54 | 11 | 56.6 | 66.1 | 36.6 |
| 121524.0520 | S | 12.5 | 0.001 | 1.00...1.60 | 3 | IP54 | 11 | 56.6 | 66.1 | 36.6 |
| 121524.0600 | P | 12.5 | 0.001 | 0.70...1.40 | 3 | IP67 | 11 | 59.6 | 78.4 | 36.6 |
| 121524.0700 | S | 25 | 0.001 | 0.65...1.15 | 4 | IP54 | 11 | 69.3 | 79 | 49.4 |
| 121524.0710 | S | 25 | 0.001 | 0.45...0.90 | 4 | IP54 | 11 | 69.3 | 79 | 49.4 |
| 121524.0720 | S | 25 | 0.001 | 0.90...1.80 | 4 | IP54 | 11 | 69.3 | 79 | 49.4 |
| 121524.0800 | P | 25 | 0.001 | 0.65...1.8 | 4 | IP67 | 11 | 85.4 | 99.9 | 49.4 |
| 121524.0900 | S | 50 | 0.01 | 1.40...2.90 | 20 | IP54 | 11 | 121 | 142 | 88 |
| 121524.0910 | S | 50 | 0.001 | 1.40...2.90 | 5 | IP54 | 11 | 121 | 142 | 88 |
| 121524.0920 | P | 50 | 0.001 | 0.90...2.80 | 5 | IP67 | 11 | 104.4 | 175.4 | - |
| 121524.1000 | S | 100 | 0.01 | 1.80...3.80 | 20 | IP54 | 11 | 172 | 244 | 139 |
| 121524.1010 | S | 100 | 0.001 | 1.80...3.80 | 6 | IP54 | 11 | 172 | 244 | 139 |
| 121524.1100 | S | 150 | 0.01 | 2.60...5.70 | 20 | IP54 | 11 | 224 | 349 | 193 |
| 121524.1110 | S | 150 | 0.001 | 2.60...5.70 | 10 | IP54 | 11 | 224 | 349 | 193 |
121524 - Dial gauge digital SYLVAC S_DIAL WORK ADVANCED
Swiss Made - 3-year guarantee. Programmable digital dial indicator made of aluminium. Mounting shaft Ø 8 h6, interchangeable sensor points M2.5. Operation via signal line Power USB / RS-232 enables operation without battery.

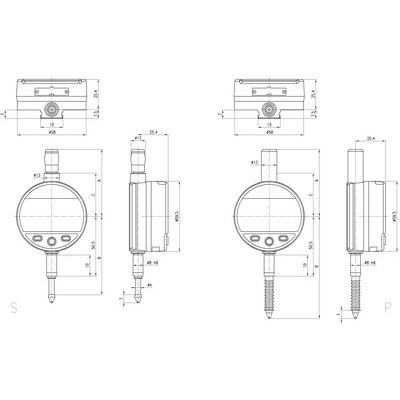

Designs:
Type P: With protective bellows
Type S: Standard
Features:
LCD display can be rotated 270°
Conversion mm/inch
Setting display to zero
PRESET (fied value setting)
Ref I / Ref II
TOL (tolerance input)
MAX / MIN / DELTA function
Conversion factor
Reverse measuring direction
Programmable key (functions)
Confiurable via PC
Data output: Proximity + Power
Package contents:
Delivered in transport packaging, dial indicators with resolution 0.001 mm incl. factory certifiate.
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Appropriate accessories:
Signal lines 109145 /.1000 /.1100; 121540 /.0800 /.2000
Measuring inserts 124008; 124010
