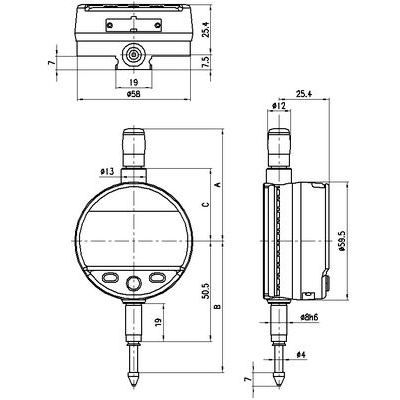

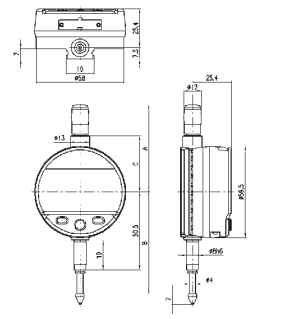

| Mã đặt hàng | Kiểu | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Tiêu chuẩn chống nước | Chiều cao số | Model | A | B | C |
| mm | mm | N | µm | mm | mm | mm | mm | ||||
| 121470.0100 | S | 12.5 | 0.0001 | 0.65...0.90 | 1.8 | IP54 | 11 | Nano | 56.6 | 66.1 | 36.6 |
| 121470.0200 | S | 12.5 | 0.0001 | 0.65...0.90 | 1.8 | IP54 | 11 | Nano Bluetooth | 56.6 | 66.1 | 36.6 |
| 121470.0250 | S | 12.5 | 0.0001 | 0.65...0.90 | 1.8 | IP54 | 11 | Nano Bluetooth analog | 56.6 | 66.1 | 36.6 |
| 121470.0300 | S | 25 | 0.0001 | 0.65...1.15 | 2.2 | IP54 | 11 | Nano | 69.3 | 79 | 49.4 |
| 121470.0400 | S | 25 | 0.0001 | 0.65...1.15 | 2.2 | IP54 | 11 | Nano Bluetooth | 69.3 | 79 | 49.4 |
| 121470.0450 | S | 25 | 0.0001 | 0.65...1.15 | 2.2 | IP54 | 11 | Nano Bluetooth analog | 69.3 | 79 | 49.4 |

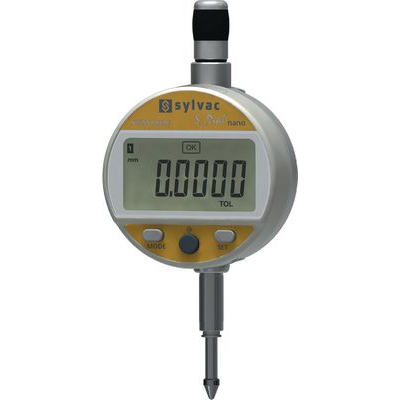

121470 - Dial gauge digital S_DIAL WORK NANO / NANO BLUETOOTH SMART
Swiss Made - 3-year guarantee. Programmable digital dial indicator made of aluminium. Mounting shaft Ø 8-h6, exchangeable probe tips
M2.5, operation via signal line Power USB enables operation without battery.
Designs:
Type S: Standard
Features:
LCD display can be rotated 270°
Conversion mm/inch
Setting display to zero
PRESET (fixed value setting)
Ref I / Ref II
TOL (tolerance input)
MAX / MIN / DELTA function
Conversion factor
Reverse measuring direction
Programmable key (functions)
Configurable via PC
Data output Proximity, Power, Bluetooth SMART (depending on the model)
Package contents:
Delivered in transport packaging incl. factory certificate.
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Appropriate accessories:
Signal lines 109145 /.1000 /.1100; 121540 /.0800 /.2000
Measuring inserts 124008; 124010
USB dongle 109145.1390 for data transfer to a computer via Bluetooth SMART.
