| Mã đặt hàng | 121460.0100 | 121460.0200 | |
| Kiểu | S | S | |
| Dải đo | mm | 12.5 | 25 |
| Độ phân giải | mm | 0.001 | 0.001 |
| Áp lực đo | N | 0.65...0.90 | 0.65...1.15 |
| Độ chính xác | µm | 3 | 4 |
| Tiêu chuẩn chống nước | IP54 | IP54 | |
| Chiều cao số | mm | 9 | 9 |

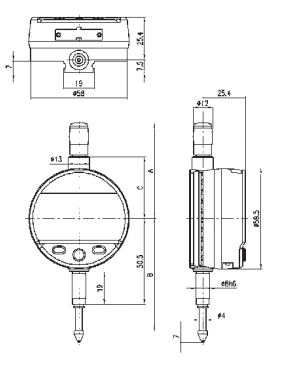

| A | mm | 56.6 | 69.3 |
| B | mm | 66.1 | 79 |
| C | mm | 36.6 | 49.4 |
121460 - Dial gauge SYLVAC S_DIAL WORK ANALOG
Swiss Made - 3-year guarantee.Programmable digital dial indicator made of aluminium. Mounting shaft Ø 8-h6, exchangeable probe tips M2.5, operation via signal line Power USB / RS-232 enables operation without battery.
Designs:
Type S: Standard
Features:
LCD display can be rotated 270°
Analog display
Conversion mm/inch
Setting display to zero
PRESET (fixed value setting)
Ref I / Ref II
TOL (tolerance input)
MAX / MIN / DELTA function
Conversion factor
Reverse measuring direction
Programmable key (functions)
Configurable via PC
Data output Proximity + Power
Package contents:
Delivered in transport packaging incl. factory certificate.
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Appropriate accessories:
Signal lines 109145 /.1000 /.1100; 121540 /.0800 /.2000
Measuring inserts 124008; 124010
