| Mã đặt hàng | 121450.0100 | 121450.0200 | 121450.0300 | 121450.0400 | |
| Kiểu | S | S | S | S | |
| Dải đo | mm | 12.5 | 25 | 50 | 100 |
| Độ phân giải | mm | 0.001 | 0.001 | 0.001 | 0.001 |
| Áp lực đo | N | 0.65...0.90 | 0.65...1.15 | 1.40...2.90 | 1.80...3.80 |
| Độ chính xác | µm | 3 | 4 | 5 | 6 |
| Tiêu chuẩn chống nước | IP54 | IP54 | IP54 | IP54 | |
| Chiều cao số | mm | 11 | 11 | 11 | 11 |

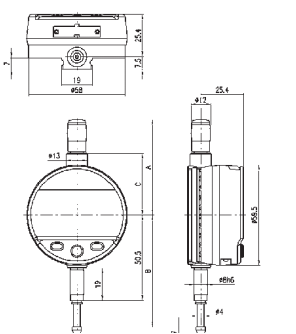

| A | mm | 56.6 | 69.3 | 50 | 172 |
| B | mm | 66.1 | 79 | 142 | 244 |
| C | mm | 36.6 | 49.4 | 88 | 139 |

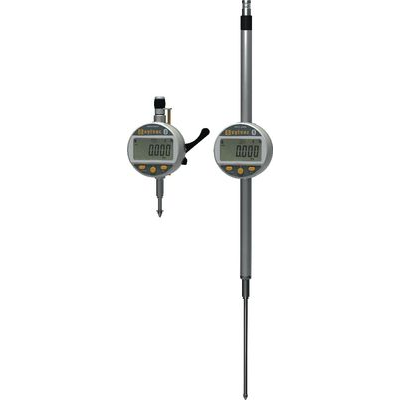

121450 - Dial gauge digital SYLVAC S_DIAL WORK BLUETOOTH SMART
Swiss Made - 3-year guarantee. Programmable digital dial indicator made of aluminium. Mounting shaft Ø 8-h6,exchangeable probe tips M2.5, operation via signal line Power USB / RS-232 enables operation without battery.
Designs:
Type S: Standard
Features:
LCD display can be rotated 270°
Conversion mm/inch
Setting display to zero
PRESET (fixed value setting)
Ref I / Ref II
TOL (tolerance input)
MAX / MIN / DELTA function
Conversion factor
Reverse measuring direction
Programmable key (functions)
Configurable via PC
Data output Proximity, Power, Bluetooth SMART
Package contents:
Delivered in transport packaging incl. factory certificate.
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Appropriate accessories:
Signal lines 109145 /.1000 /.1100; 121540 /.0800 /.2000
Measuring inserts 124008; 124010
USB dongle 109145.1390 for data transfer to a computer via Bluetooth SMART.
| Mã đặt hàng | 121450.0100 | 121450.0200 | 121450.0300 | 121450.0400 | |
| Kiểu | S | S | S | S | |
| Dải đo | mm | 12.5 | 25 | 50 | 100 |
| Độ phân giải | mm | 0.001 | 0.001 | 0.001 | 0.001 |
| Áp lực đo | N | 0.65...0.90 | 0.65...1.15 | 1.40...2.90 | 1.80...3.80 |
| Độ chính xác | µm | 3 | 4 | 5 | 6 |
| Tiêu chuẩn chống nước | IP54 | IP54 | IP54 | IP54 | |
| Chiều cao số | mm | 11 | 11 | 11 | 11 |
| A | mm | 56.6 | 69.3 | 50 | 172 |
| B | mm | 66.1 | 79 | 142 | 244 |
| C | mm | 36.6 | 49.4 | 88 | 139 |
121450 - Dial gauge digital SYLVAC S_DIAL WORK BLUETOOTH SMART
Swiss Made - 3-year guarantee. Programmable digital dial indicator made of aluminium. Mounting shaft Ø 8-h6,exchangeable probe tips M2.5, operation via signal line Power USB / RS-232 enables operation without battery.
Designs:
Type S: Standard
Features:
LCD display can be rotated 270°
Conversion mm/inch
Setting display to zero
PRESET (fixed value setting)
Ref I / Ref II
TOL (tolerance input)
MAX / MIN / DELTA function
Conversion factor
Reverse measuring direction
Programmable key (functions)
Configurable via PC
Data output Proximity, Power, Bluetooth SMART
Package contents:
Delivered in transport packaging incl. factory certificate.
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Appropriate accessories:
Signal lines 109145 /.1000 /.1100; 121540 /.0800 /.2000
Measuring inserts 124008; 124010
USB dongle 109145.1390 for data transfer to a computer via Bluetooth SMART.
