| Mã đặt hàng | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Tiêu chuẩn | Chiều cao số |
| mm | mm | N | µm |
mm | ||
121975.0101 |
12.7 |
0.001 |
≤1.5 | 3 | IP42 | 8 |

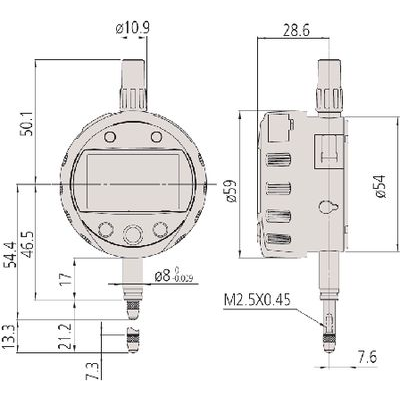

121975 - Digital dial gauge MITUTOYO ID-C Max-Min
Series 543 - Dial indicator with absolute scale. Start position, once set, is retained until next batterychange. Optimal measuring precision even at high process speeds.
Features:
LCD display can be rotated 330°
ABSOLUTE™ system
ZERO / ABS function
Tolerance input
Visual tolerance judgment GO/±NG
MAX / MIN / DELTA function
High speed sampling of 50 times/s
PRESET (fied value setting)
Counting sense reversal
Data output Digimatic
Package contents:
Delivered in transport packaging.
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Appropriate accessories:
Signal lines 122000 /.0300 /.0400; 154558.0060
Measuring inserts 124008; 124010
Accessories 122000
