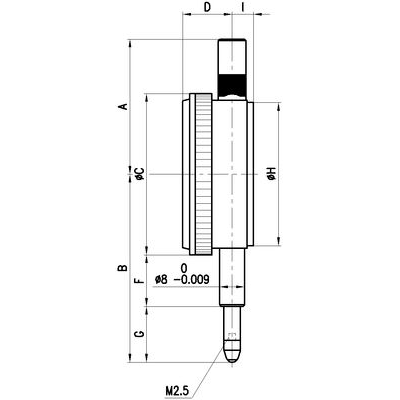

| Mã đặt hàng | Dải đo | Độ phân giải | BezelØ | 1revolution | Accuracy | Lettering | A | B | C | D | F | G | H | I |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 123430.0100 | 1 | 0.001 | 58 | 0.2 | JISB7503 | 0...100...0 | 48 | 60.7 | Ø56.4 | 16.1 | 20 | 12.5 | Ø52 | 8.7 |
| 123430.2010 | 2 | 0.002 | 58 | 0.2 | ISO463 | 0...10...0 | 48 | 60.7 | Ø56.4 | 16.1 | 20 | 12.5 | Ø52 | 8.7 |
| 123430.2020 | 2 | 0.002 | 58 | 0.2 | ISO463 | 0...20 | 48 | 60.7 | Ø56.4 | 16.1 | 20 | 12.5 | Ø52 | 8.7 |
| 123430.2110 | 5 | 0.002 | 58 | 0.2 | ISO463 | 0...10...0 | 48 | 60.7 | Ø56.4 | 16.1 | 20 | 12.5 | Ø52 | 8.7 |
| 123430.2120 | 5 | 0.002 | 58 | 0.2 | ISO463 | 0...20 | 48 | 60.7 | Ø56.4 | 16.1 | 20 | 12.5 | Ø52 | 8.7 |
| 123430.2210 | 12 | 0.002 | 58 | 0.2 | 20µm | 0...10...0 | 48 | 68.5 | Ø56.4 | 16.1 | 20 | 20.3 | Ø52 | 8.7 |
| 123430.2220 | 12 | 0.002 | 58 | 0.2 | 20µm | 0...20 | 48 | 68.5 | Ø56.4 | 16.1 | 20 | 20.3 | Ø52 | 8.7 |
123430 - Dial gauge FUTURO
3-year guarantee - precision version with impact protection.
Features:
Rotating dial with blocking
Adjustable tolerance marks
Clamping shaft Ø 8 mm
Exchangeable measuring insert M2.5
Package contents:
Delivered in transport packaging incl. ISO certifiate.
Appropriate accessories:
Measuring inserts 124008; 124010
