| Mã đặt hàng | Kiểu | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Tiêu chuẩn | Chiều cao số |
| mm | mm | N | µm |
mm | |||
| 121970.0100 | ID-N | 12.7 | 0.01 | 2.5 | 20 | IP66 | 6.2 |
| 121970.0200 | ID-N | 12.7 | 0.01/0.001 | 2.5 | 3 | IP66 | 6.2 |
| 121970.1000 | ID-B | 5 | 0.01 | 2 | 20 | IP66 | 6.2 |
| 121970.1100 | ID-B | 5 | 0.01/0.001 | 2 | 3 | IP66 | 6.2 |

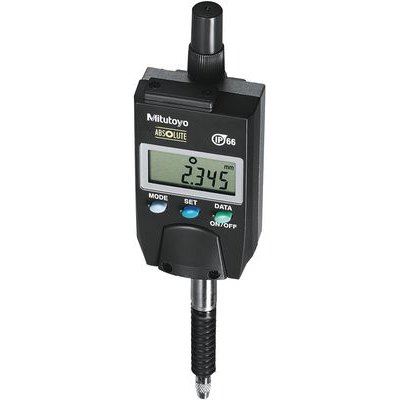

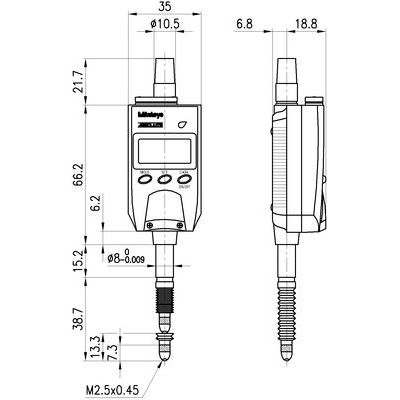

121970- Digital dial gauge MITUTOYO ID-N / ID-B
Series 543 - Dial gauge intended specifially for installation in devices with limited space available.Flexible installation thanks to re-orientable display.
Designs:
Type ID-B: Reading from above
Type ID-N: Front reading
Features:
LCD display
ABSOLUTE™ system
PRESET (fied value setting)
Visual tolerance judgment GO/±NG
Counting sense reversal
Signal input (ext. control)
Data output Digimatic
Package contents:
Delivered in transport packaging.
Appropriate batteries:
1 pieces 155050.0900 - SR44 (357/303) / 1.55 V (included in scope of delivery).
Appropriate accessories:
Signal lines 122000 /.2000 /.2100 ; 154558.0070
Measuring inserts 124008; 124010
Accessories 122000
