| Mã đặt hàng | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác |
| mm | mm | N | µm | |
121960.0100 |
25 | 0.01 / 0.001 |
1.8 | 3 |
121960.0200 |
50 | 0.01 / 0.001 |
2.3 | 6 |
121960.0300 |
50 | 0.01 / 0.001 |
2.3 | 3 |

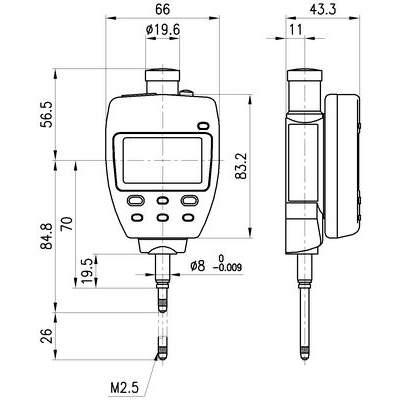

121960 - Digital dial gauge MITUTOYO ID-F
Series 543 - Multifunction dial gauge with absolute scale. One-time setting of start position. Optimal measuring precision even at high process speeds. Effortless reading with large display digitsand analogue display.
Features:
Combined analog / digital display
ABSOLUTE™ system
ZERO / ABS function
Visual tolerance judgment GO/±NG
MAX / MIN / DELTA function
PRESET (fied value setting)
Keylock
Counting sense reversal
Data output Digimatic
Package contents:
Delivered in transport packaging incl. power adapter (battery operation not possible).
Appropriate accessories:
Signal lines 122000 /.0100 /.0200; 154558.0040
Measuring inserts 124008; 124010
Accessories 122000
