| Mã đặt hàng | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Chiều cao số |
| mm | mm | N | µm | mm | |
121950.0100 |
30.4 | 0.001 / 0.0005 |
≤ 2.0 |
1.5 | 9.5 |
121950.0200 |
60.9 | 0.001 / 0.0005 |
≤ 2.5 |
2.5 | 9.5 |

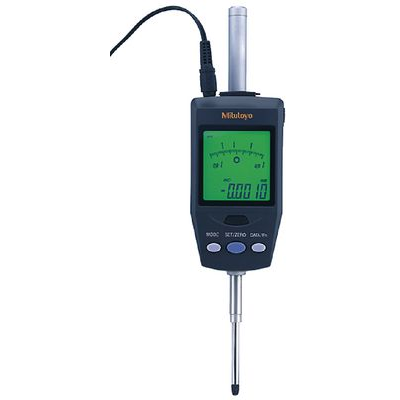

121950 - Digital dial gauge MITUTOYO ID-H
Series 543 - Multifunctional dial indicator with high accuracy and small resolution. Optimal measuring precision, even at high process speeds (1000 mm/sec.). Effortless reading with large display digits and analogue display.
Features
Combined analog / digital display
ABSOLUTE™ system
ZERO (Setting display to zero)
Visual tolerance judgment GO/±NO
MAX / MIN / DELTA function
PRESET (fied value setting)
Keylock
Counting sense reversal
Can be controlled externally by remote (optional)
Data input via PRESETTER (optional)
Data output Digimatic + RS-232
Package contents:
Delivered in transport packaging incl. power adapter (battery operation not possible) and factory
certifiate.
Appropriate accessories:
Signal lines 122000 /.0100 /.0200 /.0990 /.1000; 154558.0040
Measuring inserts 124008; 124010
Accessories 122000
