| Mã đặt hàng | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Tiêu chuẩn chống nước | Chiều cao số |
| mm | mm | N | µm | mm | ||
| 121920.0101 | 12.7 | 0.01 | 0.9 | 20 | IP42 | 11 |
| 121920.0201 | 12.7 | 0.01 | 0.2...0.5 | 20 | IP42 | 11 |
| 121920.0401 | 25.4 | 0.01 | 1.8 | 20 | IP42 | 11 |
| 121920.0500 | 50.8 | 0.01 | 2.3 | 40 | IP42 | 11 |
| 121920.0601 | 12.7 | 0.001/0.01 | 1.5 | 3 | IP42 | 11 |
| 121920.0602 | 0.5“/12.7 | 0.0005“/0.001 | 1.5 | 3 | IP42 | 11 |
| 121920.0700 | 12.7 | 0.001/0.01 | 0.4...0.7 | 3 | IP42 | 11 |
| 121920.0900 | 25.4 | 0.001/0.01 | 1.8 | 3 | IP42 | 11 |
| 121920.1001 | 50.8 | 0.001/0.01 | 2.3 | 5 | IP42 | 11 |

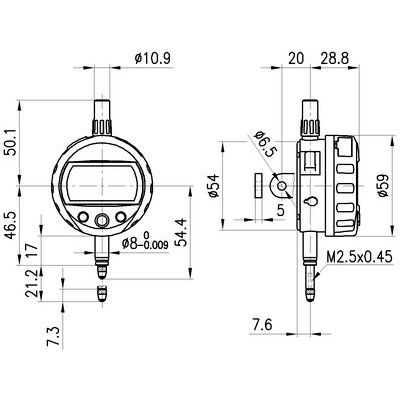

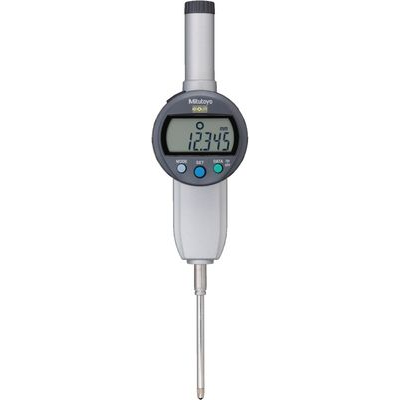

121920 - Dial gauge digital MITUTOYO ID-C
Series 543 - Multifunctional dial indicator with absolute scale. One-time setting of start position.Optimal measuring precision even at high process speeds.
Features:
LCD display 330° rotatable
ABSOLUTE™ system
ZERO / ABS function
Tolerance judgment GO/±NG
PRESET (fied value setting)
Keylock
Counting sense reversal
Calculation function
Data output Digimatic
Package contents:
Delivered in transport packaging incl. factory certifiate.
Appropriate batteries:
1 pieces 155050.0900 - SR44 (357/303) / 1.55 V (included in scope of delivery).
Appropriate accessories:
Signal lines 122000 /.0300 /.0400; 154558.0060
Measuring inserts 124008; 124010
Accessories 122000
