Mã đặt hàng | 122940.0100 | 122940.0200 | 122940.0300 | |
Dải đo | mm | 30 | 50 | 100 |
Độ phân giải | 0.01 | 0.01 | 0.01 | |
Bezel Ø | mm | 58 | 58 | 58 |
Áp lực đo | N | 2.2 | 2.5 | 3.2 |
1revolution | mm | 1 | 1 | 1 |
Độ chính xác | µm | 25 | 25 | 25 |
Lettering | 0...100 | 0...100 | 0...100 | |

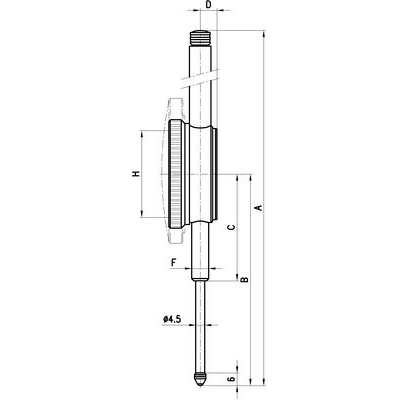

A | mm | 148 | 228 | 390 |
B | mm | 88 | 117.2 | 211.6 |
C | mm | 50 | 60 | 103.6 |
D | mm | 10 | 9 | 9 |
Ref | 712 | 722 | 732 | |
F | mm | Ø8h6 | Ø8h6 | Ø8h6 |
H | mm | 58 | 58 | 58 |

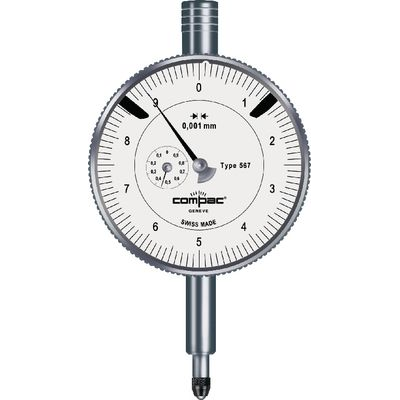

122940 - Dial gauge COMPAC
Version with large measuring span, rack and shaft made of stainless steel, hardened and ground. Full metal housing, rotatable scale sheet, adjustable tolerance marks.
Package contents:
Delivered in transport packaging incl. factory certifiate.
Appropriate accessories:
Measuring inserts 124008; 124010
