| Mã đặt hàng | Dải đo | Độ phân giải | Bezel Ø | Áp lực đo | 1revolution | Độ chính xác | Lettering | Ref | Tiêu chuẩn chống nước |
| mm | mm | N | µm | ||||||
| 122920.0100 | 5 | 0.01 | 40 | 1.4 | 0.5 | 14 | 0...50 | 353 | - |
| 122920.0200 | 5 | 0.01 | 40 | 2 | 0.5 | 14 | 0...50 | 353E | IP54 |
| 122920.0300 | 3 | 0.002 | 40 | 1.4 | 0.2 | 12 | 0...20 | 355 | - |
| 122920.0400 | 3 | 0.002 | 40 | 1.7 | 0.2 | 12 | 0...20 | 355E | IP54 |
| 122920.0500 | 1 | 0.001 | 40 | 1.7 | 0.1 | 5 | 0...10 | 367 | - |
| 122920.0600 | 1 | 0.001 | 40 | 2 | 0.1 | 5 | 0...10 | 367E | IP54 |
| 122920.0700 | 10 | 0.01 | 58 | 1.5 | 1 | 17 | 0...100 | 532 | - |
| 122920.0800 | 10 | 0.01 | 58 | 2.2 | 1 | 17 | 0...100 | 532E | IP54 |
| 122920.0900 | 5 | 0.002 | 58 | 1.5 | 0.2 | 14 | 0...20 | 555 | - |
| 122920.1000 | 5 | 0.002 | 58 | 1.7 | 0.2 | 14 | 0...20 | 555E | IP54 |
| 122920.1100 | 5 | 0.001 | 58 | 1.5 | 0.2 | 14 | 0...20 | 556 | - |
| 122920.1200 | 5 | 0.001 | 58 | 1.7 | 0.2 | 14 | 0...20 | 556E | IP54 |
| 122920.1300 | 1 | 0.001 | 58 | 1.5 | 0.1 | 5 | 0...10 | 567 | - |

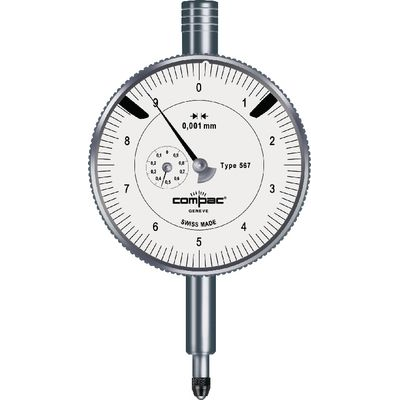

122920 - Dial gauge COMPAC
Impact protected version, shaft and rack made of stainless steel, hardened and ground. Full metal housing, rotatable bezel, adjustable tolerance markers.
Package contents:
Delivered in transport packaging incl. factory certifiate.
Appropriate accessories:
Measuring inserts 124008; 124010
