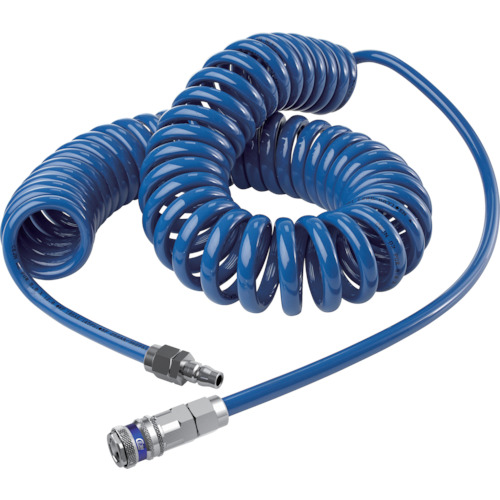

- Comes with a coupling that allows for one-touch connection with high flow rate.
- This is a polyurethane hose with excellent durability and flexibility.
- It is already assembled so it can be used immediately.
- Compatible with general domestic products.
- For pneumatic tools and air work in repair shops, paint shops, and general production factories.
Specifications in detail
Fluid temperature: -20 to 60°C
Operating pressure: 1.0MPa
With couplings on both ends
Connection fittings: Couplings/Nipples (Series 315)
Coil diameter (mm): 52
Color: Blue
Hose inner diameter x outer diameter (mm): 6.5 x 10
Usage range (m): 4
Total length (mm): 930
Coil length (mm): 330
Outer diameter (mm): 10
Inner diameter (mm): 6.5
Fluid used: Air
Operating pressure (MPa): 1.0
Fluid temperature (℃): -20 to 60
CEJN 19-958-9415
