Mã đặt hàng |
Mức cân | Độ phân giải | With load receptacle |

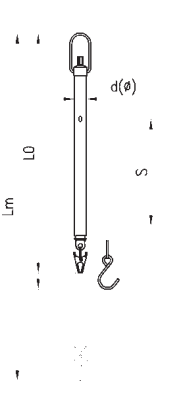

d | L0 | Lm | S |
| g | mm | mm | mm | mm | |||
| 173100.0100 | 10 | 0.1 | Klammer | 12.2 | 225 | 330 | 100 |
| 173100.0200 | 20 | 0.2 | Klammer | 12.2 | 225 | 330 | 100 |
| 173100.0300 | 50 | 0.5 | Klammer | 12.2 | 225 | 330 | 100 |
| 173100.0400 | 100 | 1 | Klammer | 12.2 | 225 | 330 | 100 |
| 173100.0500 | 500 | 5 | Klammer | 12.2 | 225 | 330 | 100 |
| 173100.0600 | 1000 | 10 | Klammer | 12.2 | 225 | 330 | 100 |
173100 - Spring balances PESOLA
Swiss made - LIGHT-LINE - Quality product with double scale, providing a 360° panoramic readout. Precise read-out through the coloured marker ring. Vertical measurement only for models up to 100 g.
Features:
Accuracy ±0.3% (precise zero adjustment using the calibration screw)
Tare 15...20% of capacity
Scale stop for additional protection
Appropriate accessories:
173130 Accessories PESOLA
Calibration weights from 173457
Package contents:
Supplied in convenient plastic case with operating instructions.
Note:
Factory certifiate available on request.
|
