| Mã đặt hàng | Cone | Colletchucks | A | d2 | Dải kẹp |
| mm | mm | mm | |||
| 332300.01 | BT 30 | ER16 | 80 | 28 | 0.5...10 |
| 332300.02 | BT 30 | ER16 | 100 | 28 | 0.5...10 |
| 332300.03 | BT 30 | ER25 | 62.5 | 42 | 0.5...16 |
| 332300.04 | BT 30 | ER25 | 100 | 42 | 0.5...16 |
| 332300.05 | BT 30 | ER32 | 60 | 50 | 1...20 |
| 332300.06 | BT 30 | ER32 | 100 | 50 | 1...20 |
| 332300.07 | BT 40 | ER11 | 100 | 19 | 0.5...7 |
| 332300.08 | BT 40 | ER16 | 70 | 28 | 0.5...10 |
| 332300.09 | BT 40 | ER16 | 100 | 28 | 0.5...10 |
| 332300.1 | BT 40 | ER16 | 160 | 28 | 0.5...10 |
| 332300.11 | BT 40 | ER25 | 70 | 42 | 0.5...16 |
| 332300.12 | BT 40 | ER25 | 100 | 42 | 0.5...16 |
| 332300.13 | BT 40 | ER25 | 160 | 42 | 0.5...16 |
| 332300.14 | BT 40 | ER32 | 70 | 50 | 1...20 |
| 332300.15 | BT 40 | ER32 | 100 | 50 | 1...20 |
| 332300.16 | BT 40 | ER32 | 160 | 50 | 1...20 |
| 332300.17 | BT 40 | ER40 | 80 | 63 | 2...30 |
| 332300.18 | BT 40 | ER40 | 100 | 63 | 2...30 |
| 332300.19 | BT 40 | ER40 | 160 | 63 | 2...30 |

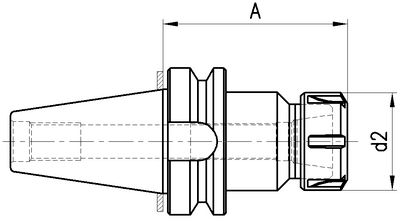

332300 Draw-in collet chuck REGO-FIX
DIN6499 ER
MAS BT, form AD, balanced for 22,000 rpm
Application: Clamping of tools with cylindrical shank in the ER collet.
Appropriate accessories:
339000 Collet chuck REGO-FIX ER DIN 6499
339040 Collet chuck REGO-FIX ER-UP DIN 6499
339060 Assortment of collet chucks REGO-FIX ER DIN 6499
339100 Tap drill pincers REGO-FIX ER-GB DIN 6499
339120 Tap drill pincers PCM DIN 6499
339180 Tightening nut REGO-FIX Hi-Q/ER DIN 6499
339500 Chuck key
339520 Chuck key
339705 Taper cleaner
339720 Cone cleaner
Scope of supply: Collet chuck holder with tightening nut
