Áo côn, collet kẹp chính xác cao REGO-FIX ER - # 339000 (SWISS)

339000 - Collet chuck REGO-FIX ER
Type ER Standard
Application: For drilling, milling, reaming and thread cutting, as well as grinding.

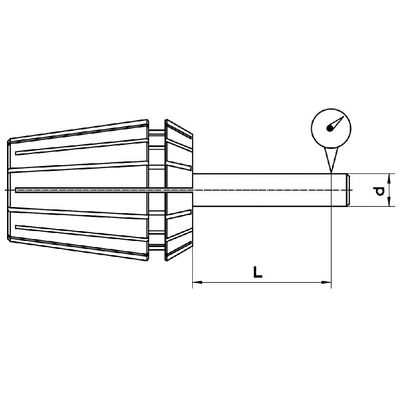

Concentricity precision: ≤ 10 μm over the entire clamping range.

Mã đặt hàng	Kiểu	d	Mã đặt hàng	Kiểu	d	Mã đặt hàng	Kiểu	d
		mm			mm			mm
339000.0010	ER8	1...0.5	339000.0370	ER20	5...4	339000.0730	ER32	13...12
339000.0020	ER8	1.5...1	339000.0380	ER20	6...5	339000.0740	ER32	14...13
339000.0030	ER8	2...1.5	339000.0390	ER20	7...6	339000.0750	ER32	15...14
339000.0040	ER8	2.5...2	339000.0400	ER20	8...7	339000.0760	ER32	16...15
339000.0050	ER8	3...2.5	339000.0410	ER20	9...8	339000.0770	ER32	17...16
339000.0060	ER8	3.5...3	339000.0420	ER20	10...9	339000.0780	ER32	18...17
339000.0070	ER8	4...3.5	339000.0430	ER20	11...10	339000.0790	ER32	19...18
339000.0080	ER8	4.5...4	339000.0440	ER20	12...11	339000.0800	ER32	20...19
339000.0090	ER8	5...4.5	339000.0450	ER20	13...12	339000.0810	ER40	3...2
339000.0100	ER11	1...0.5	339000.0460	ER25	1...0.5	339000.0820	ER40	4...3
339000.0110	ER11	1.5...1	339000.0470	ER25	2...1	339000.0830	ER0	5...4
339000.0120	ER11	2...1.5	339000.0480	ER25	3...2	339000.0840	ER40	6...5
339000.0130	ER11	2.5...2	339000.0490	ER25	4...3	339000.0850	ER40	7...6
339000.0140	ER11	3...2.5	339000.0500	ER25	5...4	339000.0860	ER40	8...7
339000.0150	ER11	3.5...3	339000.0510	ER25	6...5	339000.0870	ER40	9...8
339000.0160	ER11	4...3.5	339000.0520	ER25	7...6	339000.0880	ER40	10...9
339000.0170	ER11	4.5...4	339000.0530	ER25	8...7	339000.0890	ER40	11...10
339000.0180	ER11	5...4.5	339000.0540	ER25	9...8	339000.0900	ER40	12...11
339000.0190	ER11	5.5...5	339000.0550	ER25	10...9	339000.0910	ER40	13...12
339000.0200	ER11	6...5.5	339000.0560	ER25	11...10	339000.0920	ER40	14...13
339000.0210	ER11	6.5...6	339000.0570	ER25	12...11	339000.0930	ER40	15...14
339000.0220	ER11	7...6.5	339000.0580	ER25	13...12	339000.0940	ER40	16...15
339000.0230	ER16	1...0.5	339000.0590	ER25	14...13	339000.0950	ER40	17...16
339000.0240	ER16	2...1	339000.0600	ER25	15...14	339000.0960	ER40	18...17
339000.0250	ER16	3...2	339000.0610	ER25	16...15	339000.0970	ER40	19...18
339000.0260	ER16	4...3	339000.0620	ER32	2...1	339000.0980	ER40	20...19
339000.0270	ER16	5...4	339000.0630	ER32	3...2	339000.0990	ER40	21...20
339000.0280	ER16	6...5	339000.0640	ER32	4...3	339000.1000	ER40	22...21
339000.0290	ER16	7...6	339000.0650	ER32	5...4	339000.1010	ER40	23...22
339000.0300	ER16	8...7	339000.0660	ER32	6...5	339000.1020	ER40	24...23
339000.0310	ER16	9...8	339000.0670	ER32	7...6	339000.1030	ER40	25...24
339000.0320	ER16	10...9	339000.0680	ER32	8...7	339000.1040	ER40	26...25
339000.0330	ER20	1...0.5	339000.0690	ER32	9...8	339000.1050	ER40	27...26
339000.0340	ER20	2...1	339000.0700	ER32	10...9	339000.1060	ER40	28...27
339000.0350	ER20	3...2	339000.0710	ER32	11...10	339000.1070	ER40	29...28
339000.0360	ER20	4...3	339000.0720	ER32	12...11	339000.1080	ER40	30...29

Mã đặt hàng	Kiểu	d	Mã đặt hàng	Kiểu	d	Mã đặt hàng	Kiểu	d
		mm			mm			mm
339000.0010	ER8	1...0.5	339000.0370	ER20	5...4	339000.0730	ER32	13...12
339000.0020	ER8	1.5...1	339000.0380	ER20	6...5	339000.0740	ER32	14...13
339000.0030	ER8	2...1.5	339000.0390	ER20	7...6	339000.0750	ER32	15...14
339000.0040	ER8	2.5...2	339000.0400	ER20	8...7	339000.0760	ER32	16...15
339000.0050	ER8	3...2.5	339000.0410	ER20	9...8	339000.0770	ER32	17...16
339000.0060	ER8	3.5...3	339000.0420	ER20	10...9	339000.0780	ER32	18...17
339000.0070	ER8	4...3.5	339000.0430	ER20	11...10	339000.0790	ER32	19...18
339000.0080	ER8	4.5...4	339000.0440	ER20	12...11	339000.0800	ER32	20...19
339000.0090	ER8	5...4.5	339000.0450	ER20	13...12	339000.0810	ER40	3...2
339000.0100	ER11	1...0.5	339000.0460	ER25	1...0.5	339000.0820	ER40	4...3
339000.0110	ER11	1.5...1	339000.0470	ER25	2...1	339000.0830	ER0	5...4
339000.0120	ER11	2...1.5	339000.0480	ER25	3...2	339000.0840	ER40	6...5
339000.0130	ER11	2.5...2	339000.0490	ER25	4...3	339000.0850	ER40	7...6
339000.0140	ER11	3...2.5	339000.0500	ER25	5...4	339000.0860	ER40	8...7
339000.0150	ER11	3.5...3	339000.0510	ER25	6...5	339000.0870	ER40	9...8
339000.0160	ER11	4...3.5	339000.0520	ER25	7...6	339000.0880	ER40	10...9
339000.0170	ER11	4.5...4	339000.0530	ER25	8...7	339000.0890	ER40	11...10
339000.0180	ER11	5...4.5	339000.0540	ER25	9...8	339000.0900	ER40	12...11
339000.0190	ER11	5.5...5	339000.0550	ER25	10...9	339000.0910	ER40	13...12
339000.0200	ER11	6...5.5	339000.0560	ER25	11...10	339000.0920	ER40	14...13
339000.0210	ER11	6.5...6	339000.0570	ER25	12...11	339000.0930	ER40	15...14
339000.0220	ER11	7...6.5	339000.0580	ER25	13...12	339000.0940	ER40	16...15
339000.0230	ER16	1...0.5	339000.0590	ER25	14...13	339000.0950	ER40	17...16
339000.0240	ER16	2...1	339000.0600	ER25	15...14	339000.0960	ER40	18...17
339000.0250	ER16	3...2	339000.0610	ER25	16...15	339000.0970	ER40	19...18
339000.0260	ER16	4...3	339000.0620	ER32	2...1	339000.0980	ER40	20...19
339000.0270	ER16	5...4	339000.0630	ER32	3...2	339000.0990	ER40	21...20
339000.0280	ER16	6...5	339000.0640	ER32	4...3	339000.1000	ER40	22...21
339000.0290	ER16	7...6	339000.0650	ER32	5...4	339000.1010	ER40	23...22
339000.0300	ER16	8...7	339000.0660	ER32	6...5	339000.1020	ER40	24...23
339000.0310	ER16	9...8	339000.0670	ER32	7...6	339000.1030	ER40	25...24
339000.0320	ER16	10...9	339000.0680	ER32	8...7	339000.1040	ER40	26...25
339000.0330	ER20	1...0.5	339000.0690	ER32	9...8	339000.1050	ER40	27...26
339000.0340	ER20	2...1	339000.0700	ER32	10...9	339000.1060	ER40	28...27
339000.0350	ER20	3...2	339000.0710	ER32	11...10	339000.1070	ER40	29...28
339000.0360	ER20	4...3	339000.0720	ER32	12...11	339000.1080	ER40	30...29
