| Mã đặt hàng | Kiểu | Dải cân lực | Khoảng chia | Kích cỡ đầu nối | Chiều dài | Khối lượng |
| Nm | Nm | mm | mm | kg | ||
| 431185.0100 | 730/5 Fix | 10...50 | 0.25 | 9 x12 | 330 | 0.831 |
| 431185.0200 | 730/10 Fix | 20...100 | 0.5 | 9x12 | 386 | 0.988 |
| 431185.0300 | 730/12 Fix | 25...130 | 0.5 | 14 x 18 | 421 | 1.264 |
| 431185.0400 | 730/20 Fix | 40...200 | 1 | 14 x 18 | 467 | 1.264 |
| 431185.0500 | 730/40 Fix | 80...400 | 2 | 14 x 18 | 607 | 1.655 |
| 431185.0600 | 730/65 Fix | 130...650 | 2.5 | 14 x 18 | 890 | 3.231 |
| 431185.0700 | 730/II/65 Fix | 130...650 | 2.5 | 22 x 28 | 911 | 3.504 |
| 431185.0800 | 730/80 Fix | 160...800 | 5 | 22 x 28 | 1178 | 4.825 |
| 431185.0900 | 730/100 Fix | 200...1000 | 5 | 22 x 28 | 1363 | 5.00 |

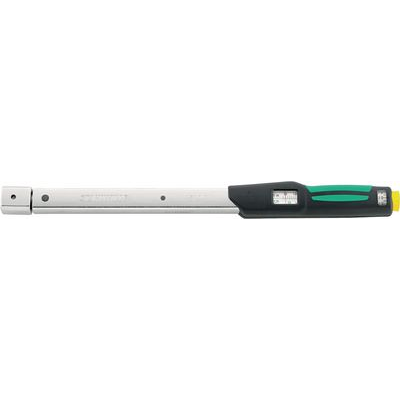

Stahlwille 730 Fix, for series production tasks; the adjusting knob can be removed after the torque has been set, preventing inadvertent changes to the settings. The Torx® tamper-resistant screw also protects against unwanted manipulation, just like the enclosed adhesive seal; settings cannot be adjusted without breaking the seal. For clockwise and counter-clockwise tighteningby turning over the insert tools. Robust design, rapid adjustment of torque with QuickSelect; the torque is set and then locked by pulling out the adjusting knob and turning it. Two-component handle with ergonomic green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol). A stop signal which can be clearly heard and felt is automatically given when the correct torque is reached; accuracy ±3% in accordance with DIN 6789. No need for manual reset to zero, since the measuring element is only under load while force is being applied. Supplied with factory certificate, Torx® tamper-resistant screw and adhesive seal. Without insert tool.
Dowload catalog
| Mã đặt hàng | Kiểu | Dải cân lực | Khoảng chia | Kích cỡ đầu nối | Chiều dài | Khối lượng |
| Nm | Nm | mm | mm | kg | ||
| 431185.0100 | 730/5 Fix | 10...50 | 0.25 | 9 x12 | 330 | 0.831 |
| 431185.0200 | 730/10 Fix | 20...100 | 0.5 | 9x12 | 386 | 0.988 |
| 431185.0300 | 730/12 Fix | 25...130 | 0.5 | 14 x 18 | 421 | 1.264 |
| 431185.0400 | 730/20 Fix | 40...200 | 1 | 14 x 18 | 467 | 1.264 |
| 431185.0500 | 730/40 Fix | 80...400 | 2 | 14 x 18 | 607 | 1.655 |
| 431185.0600 | 730/65 Fix | 130...650 | 2.5 | 14 x 18 | 890 | 3.231 |
| 431185.0700 | 730/II/65 Fix | 130...650 | 2.5 | 22 x 28 | 911 | 3.504 |
| 431185.0800 | 730/80 Fix | 160...800 | 5 | 22 x 28 | 1178 | 4.825 |
| 431185.0900 | 730/100 Fix | 200...1000 | 5 | 22 x 28 | 1363 | 5.00 |
Stahlwille 730 Fix, for series production tasks; the adjusting knob can be removed after the torque has been set, preventing inadvertent changes to the settings. The Torx® tamper-resistant screw also protects against unwanted manipulation, just like the enclosed adhesive seal; settings cannot be adjusted without breaking the seal. For clockwise and counter-clockwise tighteningby turning over the insert tools. Robust design, rapid adjustment of torque with QuickSelect; the torque is set and then locked by pulling out the adjusting knob and turning it. Two-component handle with ergonomic green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol). A stop signal which can be clearly heard and felt is automatically given when the correct torque is reached; accuracy ±3% in accordance with DIN 6789. No need for manual reset to zero, since the measuring element is only under load while force is being applied. Supplied with factory certificate, Torx® tamper-resistant screw and adhesive seal. Without insert tool.
