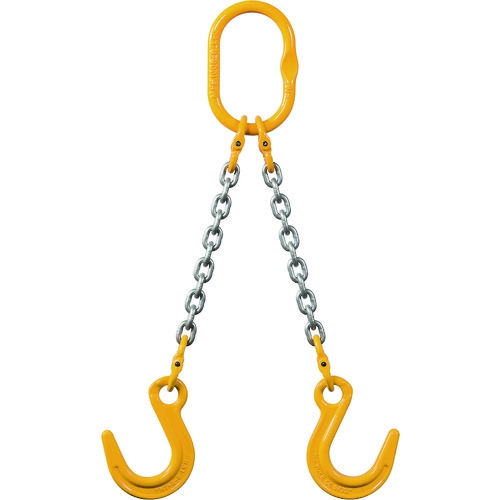

Chain ring 100 (eye type) large mouth hook working load 10.8t
Basic working load (t): 10.8
Effective length l (m): 2.0
Master link dimension (mm) a: 140
Master link dimension (mm) b: 208
Master link dimension (mm) d: 34
Master link dimension (mm) p: 245
Foundry hook dimension (mm) a: 49
Foundry hook dimension (mm) b: 25
Foundry hook dimension (mm) n: 97
Foundry hook dimension (mm) p: 215
Foundry hook dimension (mm) s: 50
Chain wire diameter (mm): 16.0
Foundry hook YN dimension (mm) t: 43
ZOJIRUSHI CHAIN BLOCK CO., LTD. 2-MFF-YN-16
