Features
- This one tool serves two purposes: drilling and tapping.
- The reverse lock mechanism allows reverse machining. (The chuck itself does not have a built-in reverse function.)
- Tapping is possible up to M16.
- This prevents loosening even when the motor is stopped suddenly from high speed rotation.
- The hook spanner can be used for further tightening, improving safety.
- It is mainly attached to a drill press or similar device and allows the attachment of drills and taps.
Specifications in detail
Runout accuracy: 5/100mm or less
Grip capacity (mm): 0.5 to 13.0
Connection taper: MT4
Outer diameter (mm): 51
Total length (mm): 213
Connection shank: MT4
Runout accuracy: 0.05mm or less
Accuracy (mm): 0.05

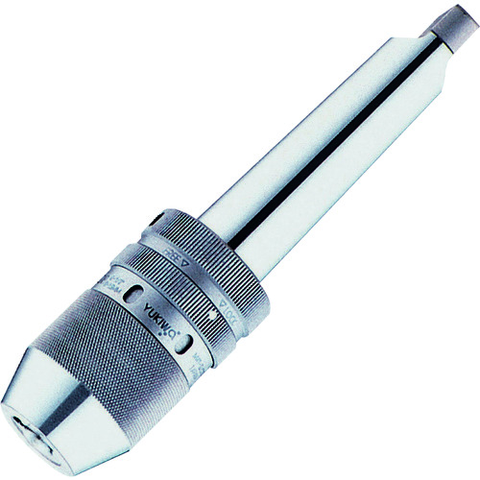

YUKIWA M4T-SLC13-95
