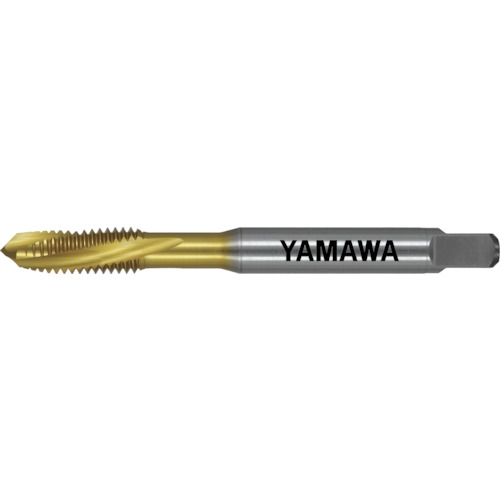

Yamanwa Seisakusho Việt Nam | Yamawa TiN coated spiral tap (for metric threads/through holes) MW4947401

Yamanwa Seisakusho Việt Nam | Yamawa TiN coated spiral tap (for metric threads/through holes) MW4947401

Thông tin sản phẩm

Tap grade: P2 class
Accuracy: P3
Nominal size: M10
Pitch (mm): 1
Thread length (mm): 23
Overall length (mm): 75
Shank diameter (mm): 7
Shank square part (mm): 5.5
Prepared hole diameter (mm): 9.09
Number of biting threads: 5 threads
Processing thread: metric thread
Surface treatment: TiN coating

Yamanwa Seisakusho AU+SL-P3-M10X1

Yamanwa Seisakusho Việt Nam | Yamawa TiN coated spiral tap (for metric threads/through holes) MW4947401

Thương hiệu: YAMAWA

Liên hệ

A spiral tap that uses a reverse helical spiral groove and can eject chips stably in medium to high speed machining ranges.
A spiral tap that uses a reverse helix spiral groove and can eject chips stably in medium to high speed machining ranges.
Also, a coated spiral tap for through-holes that achieves good chip evacuation on a wide range of materials, from aluminum to stainless steel.

For through hole machining.
Work material: stainless steel, alloy steel, carbon steel, aluminum alloy casting.
For through holes.
Work material: stainless steel, alloy steel, carbon steel, aluminum alloy casting.

Yamanwa Seisakusho AU+SL-P3-M10X1

Xem thêm

Các thương hiệu bán chạy

Thông tin sản phẩm

Tap grade: P2 class
Accuracy: P3
Nominal size: M10
Pitch (mm): 1
Thread length (mm): 23
Overall length (mm): 75
Shank diameter (mm): 7
Shank square part (mm): 5.5
Prepared hole diameter (mm): 9.09
Number of biting threads: 5 threads
Processing thread: metric thread
Surface treatment: TiN coating

Yamanwa Seisakusho AU+SL-P3-M10X1
