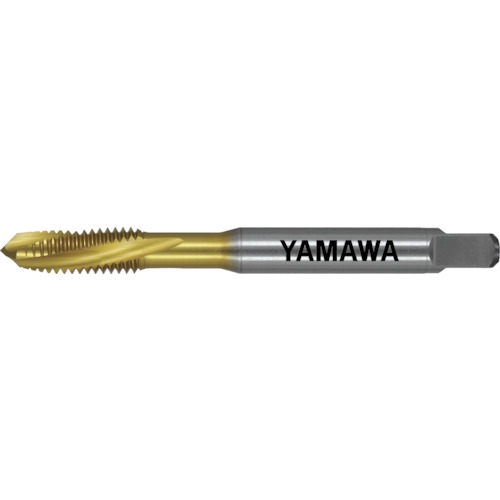

Yamanwa Seisakusho Việt Nam | Yamawa TiN coated spiral tap (for metric threads/through holes) MW4947398

Yamanwa Seisakusho Việt Nam | Yamawa TiN coated spiral tap (for metric threads/through holes) MW4947398

Thông tin sản phẩm

Tap grade: P2 class
Accuracy: P2
Nominal size: M3
Pitch (mm): 0.5
Thread length (mm): 9
Overall length (mm): 46
Shank diameter (mm): 4
Shank square part (mm): 3.2
Prepared hole diameter (mm): 2.56
Number of biting threads: 5
Processing thread: Metric thread
Surface treatment: TiN coating

Yamanwa Seisakusho AU+SL-P2-M3X0.5

Yamanwa Seisakusho Việt Nam | Yamawa TiN coated spiral tap (for metric threads/through holes) MW4947398

Thương hiệu: YAMAWA

Liên hệ

A spiral tap that uses a reverse helical spiral groove and can eject chips stably in medium to high speed machining ranges.
A spiral tap that uses a reverse helix spiral groove and can eject chips stably in medium to high speed machining ranges.
Also, a coated spiral tap for through-holes that achieves good chip evacuation on a wide range of materials, from aluminum to stainless steel.

For through hole machining.
Work material: stainless steel, alloy steel, carbon steel, aluminum alloy casting.
For through holes.
Work material: stainless steel, alloy steel, carbon steel, aluminum alloy casting.

Yamanwa Seisakusho AU+SL-P2-M3X0.5
