Features
- Using the self-adhesive properties of urethane gel, we have adopted an innovative dust collection method that does not require a dust collector. By installing it on the cell production table, a smooth production line has become possible.
- The adhesive sheet can be removed and washed with water.
- The sensor detects the insertion of the product and can blow air for a certain period of time (pulse blowing is also possible).
- A nozzle-type ionizer is attached to the top surface and ionized air is used to neutralize static electricity and remove dust from the product.
- This is the first in the industry to use the self-adhesive properties of urethane gel to adopt a revolutionary dust collection method that does not require a dust collector. By installing it on the cell production table, a smooth production line is possible.
Applications
- Eliminating static electricity and removing dust from circuit boards and semiconductor devices.
- Cleaning parts trays and removing dust from lenses and acrylic products.
- Eliminating static electricity and removing dust from circuit boards and semiconductor devices.
- Cleaning parts trays and removing dust from lenses and acrylic products
- For static elimination and dust removal of products before UV processing, deposition, and printing
- For removing dust from products before packaging
Specifications in detail
Static electricity removal method: AC high frequency corona discharge type
Dust removal timer included (adjustment range: 1 second to 30 seconds, 5 stages)
Energy-saving design with power consumption of 17W

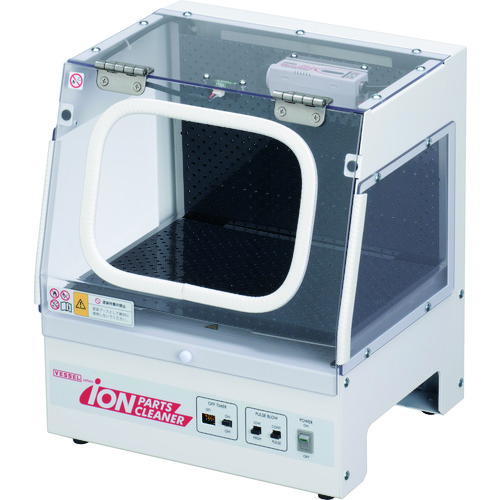

Clear static electricity removal, dust removal and dust collection box that prevents dust and dirt removed from the product from flying out (size: W: 300 D: 253 H: 350 excluding protrusions)
A nozzle type ionizer is set on the side panel, and ionized air is used to remove static electricity and dust from the product
. The ionized air can be switched between continuous and pulse blowing with the mode switch.
Dust removal timer included (adjustment range: 1 second to 30 seconds, 5 stages). The sensor detects the insertion of the product and can blow air for a certain period of time.
Energy-saving design with 17W power consumption
Optional adhesive gel
Power supply (V): DC24 ±5%, AC100-240
Power consumption (mA): 700
Air pressure used (MPa): 0.1-0.5
Power consumption (W): 17
Width (mm): 314
Depth (mm): 253
Height (mm): 361
Static electricity removal method: Piezoelectric high-frequency AC corona discharge type
Fluid used: Clean air (0.1-0.3MPa)
Applied voltage: AC6.0kV (pp)
Current (mA): 700
Air consumption: 187L/min (0.3MPa, continuous mode)
Pulse interval: Continuous mode/High-speed mode (100ms period, 40ms pulse)/Low-speed mode (250ms period, 100ms pulse)
Timer time: 1, 2, 5, 10, 30 seconds off time
VESSEL IPC-A4
