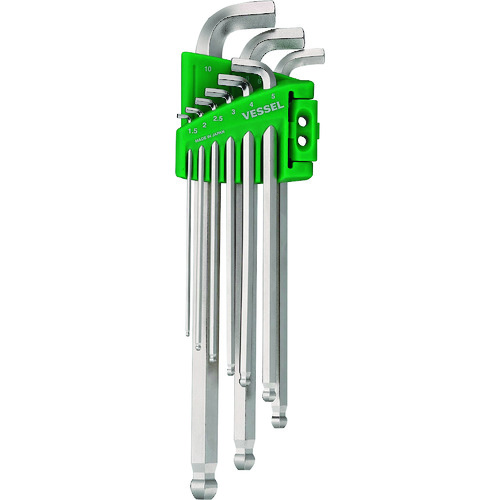

- It has a short axis that makes it easy to use in tight spaces.
- Uses EX Gokin that is resistant to twisting and breaking.
- The maximum tilt angle is 38° (design value).
- When the wrench is tilted, the drive position moves closer to the entrance of the hexagonal hole, so even with a thick neck, a maximum tilt angle of 38° can be achieved.
- The wrench is designed to easily come out even if it comes into contact with an obstacle while loosening a screw.
- The ball part will not get stuck in the hexagonal hole and become unable to come out.
- Comes with a lifetime warranty.
- (Damage, deformation, wear and tear due to excessive use are not covered.
- )
- The bending angle is set at 95° so that fingers can fit through.
- For various assembly and maintenance of various molds, machine tools, robots, automatic machines, automobiles, motorcycles, etc.
Specifications in detail
EX Gokin
Tilt angle 38°
Minor axis 95°
Full body hardening
Magnet included
Set contents (mm): 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10
Set contents (books): 9
Set contents (pieces): 10
Diagonal dimensions (mm): 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10
Total length (mm): 1.5…80.5, 2…88, 2.5…96.5, 3…104, 4…114, 5…125, 6…139, 8…162, 10…182
Diagonal (mm): 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10
Neck size (mm): 1.5…5.5, 2…7, 2.5…8.5, 3…11, 4…13, 5…16, 6…19, 8…24, 10…29
VESSEL 8209BP
