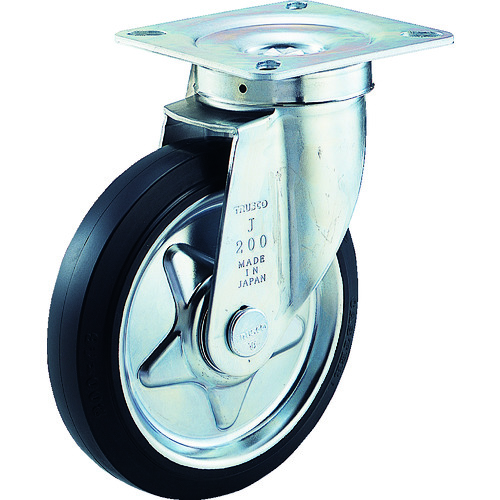

- The swivel section uses double bearings to ensure smooth rotation.
- The wheel rotation part is equipped with radial bearings, making it highly durable.
- The steel wheels are stylish and have a distinctive star shape.
- For mounting on transport carts, etc.
Specifications in detail
Plate Type
Radial bearing included
Free-standing
Wheel diameter D(mm): 100
Type: Free-standing
Allowable load (daN): 80
Allowable load (kgf): 82
Wheel width(mm):35
Mounting height H(mm): 144
Mounting seat A(mm): 95
Mounting base B(mm): 95
Mounting pitch X(mm): 67-74
Mounting pitch Y(mm): 67-74
Mounting hole diameter P(mm): 10.5
Compatible models: SHT flatbed truck
TRUSCO TJ-100C
