Features

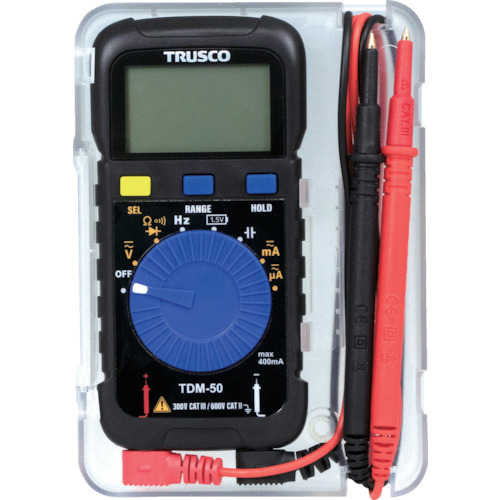

- This is a multi-function digital multimeter with a compact and slim body that measures voltage (DC, AC), current (DC, AC), resistance, frequency, capacitance, continuity check function (buzzer, LED), diode, and 1.5V battery voltage check function.
- The test leads are removable.
- The tip of the probe is gold plated.
- Dedicated outer case for integrated storage.
- The product body can be removed from the case.
- A dedicated storage space is provided to prevent probe caps from being lost.
- Equipped with auto power off and data hold functions.
- When checking continuity, the buzzer and LED will light up.
Applications
- For checking current, voltage, etc. at factory sites.
- For checking electrical characteristics in electrical work.
- For checking technical training in schools (educational settings).
Specifications in detail
DCV: Range 4V/40V/400V/600V, Resolution 0.001V/0.01V/0.1V/1V, Accuracy: ±(1.0%+3dgt), Remarks Input impedance 10MΩ or more
ACV: Range 4V/40V/400V/600V, Resolution 0.001V/0.01V/0.1V/1V, Accuracy ±(2.0%+5dgt), Remarks Input impedance 10MΩ or more, ・40Hz to 400Hz
DCA: Range 400uA/40mA/400mA, Resolution 0.1uA/0.01mA/0.1mA, Accuracy ±(2.0%+5dgt), Remarks Up to 400mA
ACA: Range 400uA/40mA/400mA, Resolution 0.1uA/0.01mA/0.1mA, Accuracy ±(2.0%+5dgt), Notes: Up to 400mA, 50Hz to 60Hz
Ω: Range 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ, Resolution 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ, Accuracy ±(2.0%+5dgt)
Frequency: Range 5Hz/50Hz/500Hz/5kHz/50kHz/100kHz, Resolution 0.001Hz/0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz, Accuracy ±(0.5%+5dgt), Notes 1Hz to 100kHz, 500mVrms or more, sine wave, 50% square wave
Capacitance: Range 50nF/500nF/5uF/50uF/100uF, Resolution 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF, Accuracy ±(5.0%+5dgt), Remarks 10nF to 100uF
Power supply: 1 coin-type lithium battery (CR2032) (sold separately)
Maximum display: 3999 counts
DC voltage (V): 600
AC voltage (V): 600
Resistance (Ω): 40M
DC current (mA): 400
AC current (mA): 400
Detection method: Average value rectification (MEAN)
Continuity check: Buzzer and LED lighting
Width (mm): 81
Depth (mm): 114
Height (mm): 15.5
Continuous use time (h): Approximately 200 hours
Operating temperature and humidity: 0°C to +40°C, 80% RH or less (but no condensation)
Test lead length: Approximately 47 cm
TRUSCO TDM-50
