- The connection can be made without pressure, making it safe for women and those who are unfamiliar with the process.
- When separating, residual pressure is automatically released, reducing recoil and unpleasant noise.
- Can be connected to general couplings (with some exceptions).
- There is no loss of air flow, maximizing the performance of air tools.
- The auto-locking mechanism ensures a secure connection.
Specifications in detail
Operating temperature range: -10 to 60°C
Operating pressure: 1.5MPa
Pressure resistance (MPa): 1.5
Counterpart mounting size: Compatible hose for bamboo shoots with outer diameter of 10.5 mm
Maximum operating pressure (MPa): 1.5
Fluid used: Air
Operating temperature range (℃): -10 to 60
Connection: Bamboo shoot outer diameter 10.5mm
Body size (mm): 30 x 85

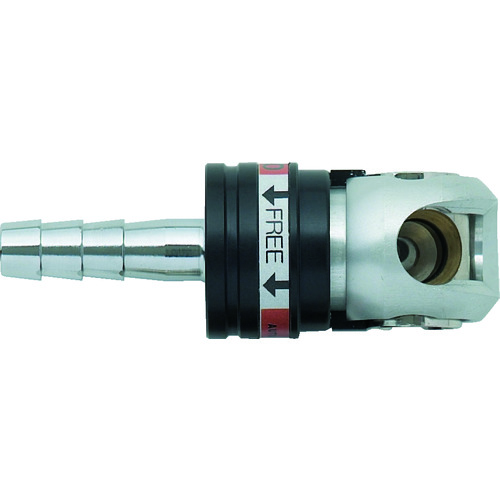

TRUSCO TSC-23SH
