Features

  • Installation only requires driving in the core rod, so you can see at a glance when installation is complete.
  • The body and threaded part have the same diameter, so only a small diameter hole needs to be drilled into the concrete.
  • It can be installed directly on top of the object to be mounted.
  • Since it is a nut tightening type, the attached item can be removed.

Applications

  • For construction work, civil engineering work, electrical work, mechanical equipment work, etc.
Specifications in detail
Packed (up to 80mm in length)
Bagged (C-1680BT, 90mm in length and above)
Screw size: W1/2
Embedding depth (mm): 50
Maximum tensile load (kN): 18.0
Total length (mm): 70
Screw length (mm): 25
Maximum thickness of attachment (mm): 6
Pilot hole diameter (mm): 13.5

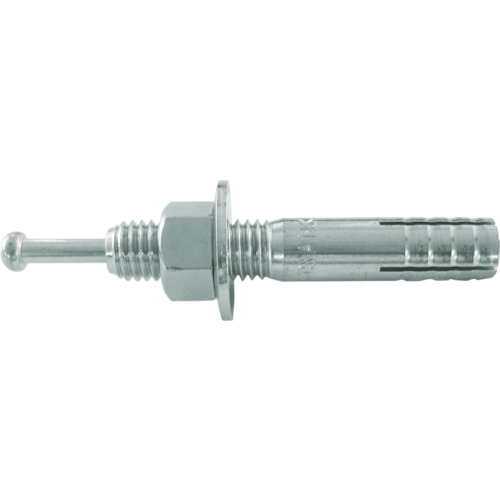

TRUSCO C-4070BT

TRUSCO Việt Nam | TRUSCO All Anchor C Type Steel W1/2X70 6 Pieces (Concrete Anchor/Core Rod Drive-in Type) All Anchor C-Type MW2027003

Thương hiệu: TRUSCO
Còn hàng
Liên hệ

MADE IN THAILAND

Features: Installation only requires driving in the core rod, so you can see at a glance when installation is complete.The body and threaded part have the same diameter, so only a small diameter hole needs to be drilled into the concrete.It can be installed directly on top of the object to be mounted.Since it is a nut tightening type, the attached item can be removed.
Applications: For construction work, civil engineering work, electrical work, mechanical equipment work, etc.
