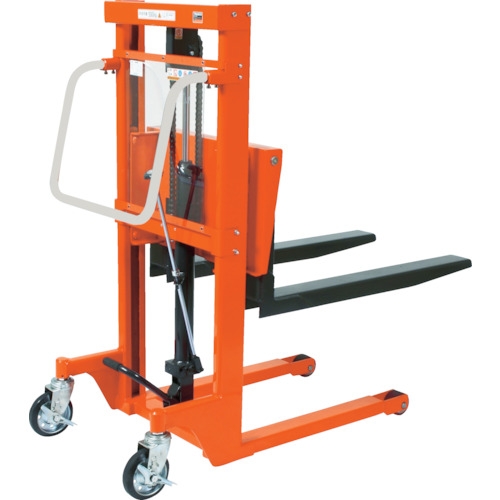

Trusco Nakayama Vietnam | TRUSCO Kozou Lifter (foot hydraulic type) MW1158241

Thương hiệu: Trusco Nakayama

Liên hệ

Standard type that can be used for a wide range of applications.
Equipped with a hydraulic fast-forward device that automatically switches the lifting pitch depending on the weight of the luggage. (Except for BEA-H200 type)
A foot-operated lifter that can be easily operated even in narrow passages and does not take up much space.
The uniquely shaped plated handle allows for flexible handling.
Equipped with an overload prevention valve.
Equipped with a hydraulic fast-forward device that automatically switches the lifting pitch depending on the weight of the luggage.
The new mast structure reduces rattling and ensures smooth ascent and descent.

Xem thêm

Các thương hiệu bán chạy

TRUSCO

CKD

LOBSTER

HATAYA

HAMMER CASTER

FACOM

PISCO

STEINEL

BAHCO

YAMADA

Thông tin sản phẩm

Manually operated
L height (mm): 82.0
Uniform load (kg): 400
Fork dimensions (mm) width x length: 100 x 700
Fork dimensions (mm) slide outer width: 215-578
Fork height (mm): 75-1200
Number of foot steps (times): fast 22/slow 60
Total height (mm): 1621
Load center distance (mm): 350
Wheel diameter (mm) front wheel/rear wheel: 80/150
Stroke (mm): 1125
Front wheels: 2 fixed urethane casters, rear wheels: 2 rubber casters with free stoppers
Lifting method: foot-operated hydraulic (spindle oil: ISO-VG22 used)
