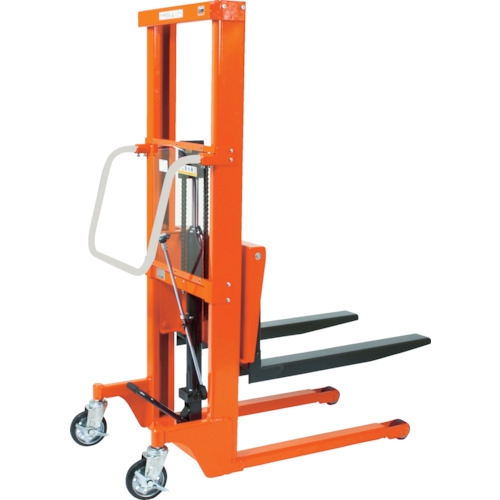

Trusco Nakayama Vietnam | TRUSCO Kozou Lifter (foot hydraulic type) MW1158240

Thương hiệu: Trusco Nakayama

Liên hệ

Standard type that can be used for a wide range of purposes.
Equipped with a hydraulic rapid feed device that automatically changes the ascending pitch depending on the weight of the load. (Other than BEA-H200 type)
A foot-operated lifter that can be easily operated even in narrow passages and does not take up much space.
Equipped with an overload prevention valve.
The uniquely shaped plated handle allows for flexible handling.
Equipped with a hydraulic rapid feed device that automatically changes the ascending pitch depending on the weight of the load.
The newly designed mast reduces rattling and allows for smooth ascending and descending.

Xem thêm

Các thương hiệu bán chạy

TRUSCO

CKD

LOBSTER

HATAYA

HAMMER CASTER

FACOM

PISCO

STEINEL

BAHCO

YAMADA

Thông tin sản phẩm

Manually operated
L height (mm): 82.0
Uniform load (kg): 200
Fork dimensions (mm) width x length: 60 x 600
Fork dimensions (mm) slide outer width: 130-468
Fork height (mm): 71-900
Number of foot steps (times): 27
Total height (mm): 1221
Load center distance (mm): 300
Wheel diameter (mm) front wheel/rear wheel: 75/125
Stroke (mm): 829
Front wheels: 2 fixed urethane casters, rear wheels: 2 rubber casters with free stoppers
Lifting method: Foot-operated hydraulic (spindle oil: ISO-VG22 used)
