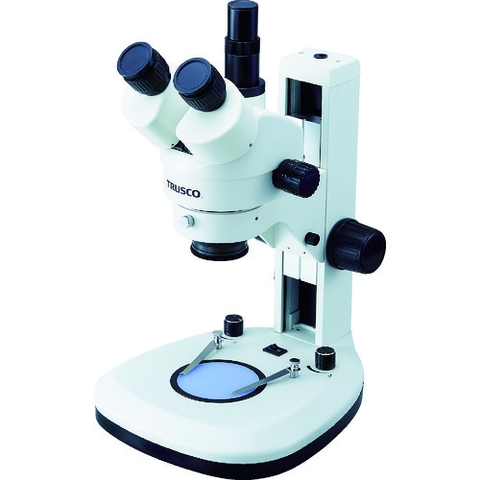

Trusco Nakayama Việt Nam | TRUSCO Zoom Stereo Microscope Trinocular (LED Lighting) SCOPRO MW1248652

Thương hiệu: Trusco Nakayama

Liên hệ

This is a zoom stereo microscope suitable for magnified inspection of electronic components, precision components, etc.
Two types of lighting are used: LED epi-illumination and transmitted illumination, and the amount of light can be adjusted with the brightness adjustment knob.
This microscope allows you to observe the object in its original state without having to slice it into a specimen.
Demo units are available. If you would like one, please contact your dealer or sales branch.

For inspecting electronic components and precision instruments, appraising gems and minerals, and observing plants and living things.

Trusco Nakayama ZMS-T1

Xem thêm

Các thương hiệu bán chạy

TRUSCO

CKD

LOBSTER

HATAYA

HAMMER CASTER

FACOM

PISCO

STEINEL

BAHCO

YAMADA

FUTURO

STAHLWILLE

KUKKO

SMC

KOKEN

Thông tin sản phẩm

Trinocular zoom type Zoom ratio 1:6:4
Pupil width adjustment range 55mm to 75mm
Stage plate: Φ80 frosted glass, Φ80 black/white acrylic plate
Epi-illumination: LED
Transmitted illumination: LED
Observable height Length: 75mm-175mm
Total magnification (times): 7-45
Objective lens (times): 0.7-4.5
Eyepiece lens (times): 10
Field of view (mm): 21< br>Working distance (mm): 100
Observable height (mm): 175
Width (mm): 250
Depth (mm): 285
Height (mm): 480< br>Transmitted illumination (W): LED
In-plane illumination: LED
Power supply (V): AC100V
Power supply: AC100V
Thickness (mm): 300-450
