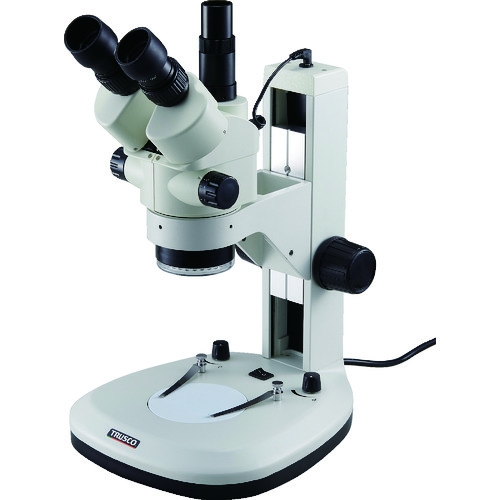

Trusco Nakayama Việt Nam | TRUSCO Zoom Stereo Microscope "SCOPRO" (with illumination) with LED ring illumination MW2066089

Thương hiệu: Trusco Nakayama

Liên hệ

This is a zoom stereo microscope suitable for magnified inspection of electronic components, precision components, etc.
Two types of illumination are used: ring-type LED epi-illumination and LED transmitted illumination, and the amount of light can be adjusted with the brightness adjustment knob.
This microscope allows you to observe the object as it is, without having to slice it into a specimen.
Demo units are available. If you would like one, please contact your dealer or sales branch.

For inspecting electronic components and precision instruments, appraising gems and minerals, and observing plants and living things.

Trusco Nakayama ZMSR-T1

Xem thêm

Các thương hiệu bán chạy

TRUSCO

CKD

LOBSTER

HATAYA

HAMMER CASTER

FACOM

PISCO

STEINEL

BAHCO

YAMADA

FUTURO

STAHLWILLE

KUKKO

SMC

KOKEN

Thông tin sản phẩm

Trinocular zoom type
Zoom ratio 1:6:4
Pupil width adjustment range 55mm-75mm
Stage plate: Φ80 frosted glass, Φ80 black/white acrylic plate
Total magnification (times): 7-45
Objective lens (times): 0.7-4.5
Eyepiece lens (times): 10
Field of view (mm): 21
Working distance (mm): 100
Observable height (mm): 175
Width (mm): 250
Depth (mm): 285
Height (mm): 480
Body type: Trinocular tube type, tilt angle 45 degrees/360 degree rotation
Transmitted illumination (W): LED
Episcopic illumination: LED ring illumination
Power supply (V): AC100V
Power supply: AC100V
Thickness (mm): 300-450
