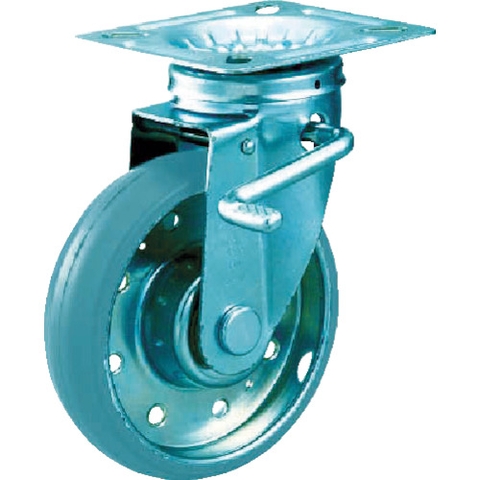

Trusco Nakayama Việt Nam | TRUSCO Plate type gray rubber caster "High Ten Caster" (tire markless type) with flexible double stopper MW7729588

Trusco Nakayama Việt Nam | TRUSCO Plate type gray rubber caster "High Ten Caster" (tire markless type) with flexible double stopper MW7729588

Thông tin sản phẩm

Swivel type (with double stopper)
Lock the rotating part and wheels at the same time
Plate type
With radial ball bearing
Wheel diameter D (mm): 130
Type: Swivel type (double stopper) )
Allowable load (daN): 177
Allowable load (kgf): 180
Wheel width (mm): 38
Mounting height H (mm): 177
Mounting seat A ( mm): 110
Mounting seat B (mm): 110
Mounting pitch X (mm): 75 to 90
Mounting pitch Y (mm): 75 to 90
Mounting hole diameter P (mm) ): 11

Trusco Nakayama HTTJB-130G

Trusco Nakayama Việt Nam | TRUSCO Plate type gray rubber caster "High Ten Caster" (tire markless type) with flexible double stopper MW7729588

Thương hiệu: Trusco Nakayama

Liên hệ

Grey rubber wheels are used to reduce tire marks on the floor.
By using high tensile strength material, the durability of the rotating parts, which are subject to wear, has been increased by more than 4 times. (Compared to our conventional product)
Radial bearings are used to improve quietness.
Using high tensile strength material to reduce weight.

For mounting on transport carts, etc., for eliminating tire marks

Trusco Nakayama HTTJB-130G
