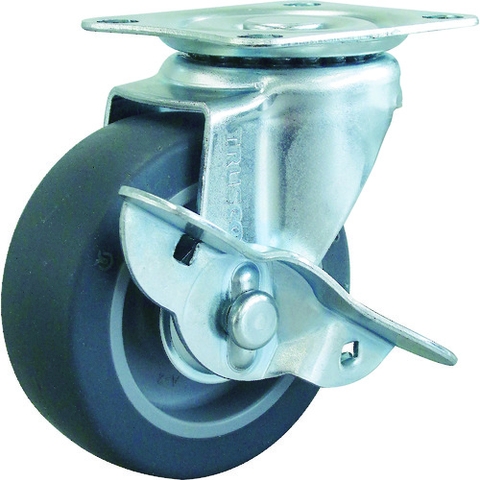

Trusco Nakayama Việt Nam | TRUSCO plate type caster TYS series (tire markless type) with free stopper MW8185235

Thông tin sản phẩm

Plate type
Flexible type (with stopper)
Swivel part: Double bearing included
Wheel diameter D (mm): 50
Type: Flexible type (with stopper)
Allowable load (daN) ): 35
Allowable load (kgf): 35.7
Wheel width (mm): 27
Mounting height H (mm): 70
Mounting seat A (mm): 70
Mounting seat B (mm): 58
Mounting pitch X (mm): 55
Mounting pitch Y (mm): 42
Mounting hole diameter P (mm): 8.8

Trusco Nakayama TYSELB-50

Trusco Nakayama Việt Nam | TRUSCO plate type caster TYS series (tire markless type) with free stopper MW8185235

Thương hiệu: Trusco Nakayama

Liên hệ

The wheels use elastomer (caster diameter 50 to 75 mm, no replacement wheels) and gray rubber (caster diameter 100 to 150 mm, replacement wheels available), so they can be used on the floor. It is less likely to cause travel marks.
Standard casters for light and medium loads with good running performance and load capacity. These standard size casters are widely used for transportation vehicles, roll box pallets, and other general work.
It has the same elasticity as a rubber car and has excellent running performance even on uneven roads.
