Thông tin sản phẩm
High pressure hose: 2m
Power cord length: 4m
Maximum frequency of use: 15 times/hour
Frequency of use: 15 times/h of vertical movement
Power source: 3-phase 200V
Quality guarantee period : 1 year
Even load (kg): 250
Table dimensions (mm) Width: 500
Table dimensions (mm) Length: 950
Table height (mm): 70-650
br>Power supply (V): Three-phase 200V
Motor output (kW): 0.55
Rise time (sec) 50Hz: 10
Rise time (sec) 60Hz: 8
Stroke (mm): 580
Unit: Separate type
Operation method: Foot switch (cord length: 2m)
Lifting method: Electro-hydraulic (turbine oil: ISO-VG32 used)
Power source: Three-phase 200V
br>Rising/lowering time (seconds): 50Hz/60Hz
Table dimensions (mm) width x length: 500 x 950

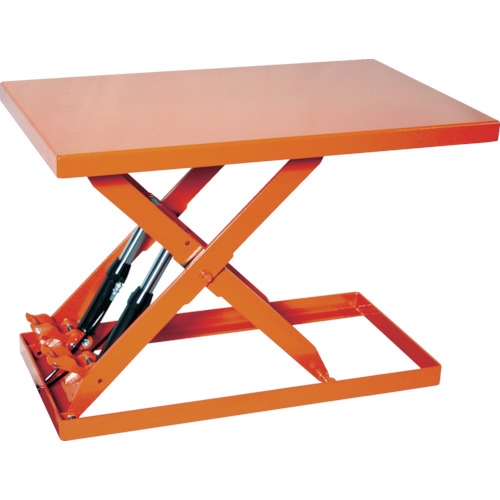

Trusco Nakayama FLN25-509
