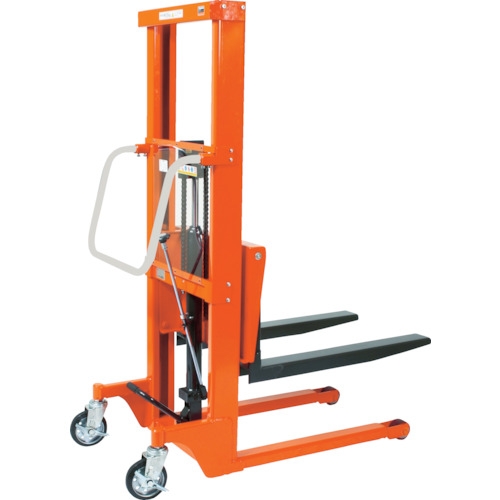

Trusco Nakayama Việt Nam | TRUSCO Kozou Lifter (foot hydraulic type/for pallets) MW1158370

Thương hiệu: Trusco Nakayama

Liên hệ

A lifter with wide legs that can scoop up 1100 x 1100 mm pallets.
The uniquely shaped plated handle allows for flexible handling.
The mast has a new structure that reduces rattling and allows for smooth lifting and lowering.
Equipped with a hydraulic fast-forward device that automatically switches the lifting pitch depending on the weight of the load.
A foot-operated lifter that is easy to operate even in narrow aisles and does not take up much space.
Equipped with an overload prevention valve.
A foot-operated lifter that is easy to operate.

Lifts and transports 1100 x 1100 mm pallets.

Xem thêm

Các thương hiệu bán chạy

TRUSCO

CKD

LOBSTER

HATAYA

HAMMER CASTER

FACOM

PISCO

STEINEL

BAHCO

YAMADA

Thông tin sản phẩm

Manually operated
Inner leg width: 1200mm
L height (mm): -
Uniform load (kg): 400
Fork dimensions (mm) width x length: 100 x 1000
Fork dimensions (mm) slide outer width: 218-581
Fork height (mm): 80-1500
Number of foot steps (times): fast 35/slow 94
Total height (mm): 1958
Load center distance (mm): 550
Wheel diameter (mm) front wheel/rear wheel: 80/150
Stroke (mm): 1421
2 casters with free stoppers
Front wheels: 2 fixed urethane casters
Lifting method: foot-operated hydraulic (spindle oil: ISO-VG22 used)
Rear wheels: 2 rubber casters with free stoppers
