| Mã đặt hàng | Dải đo | Kích thước | Khối lượng | Chiều dài |
| mm | mm | kg | mm | |
174743.0100 |
20 | 63 x 30 x 530 | 1.3 | 500 |

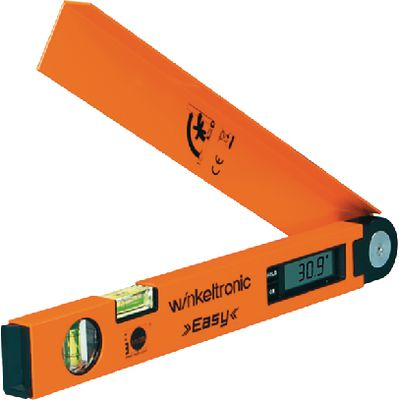

174743 Angle measurer digital
Angle measuring instrument, clinometer and digital laser level in a single device.
Features:
Digital display for angle and inclination
The display rotates for overhead work
Angle measurement in degrees
Inclination measurement in degrees or percentage
Signal tone in horizontal/vertical position
Saving of the measured value (HOLD)
Laser spot can be switched on
Angles:
Measuring range 0°...180°
Resolution 0.1°
Accuracy ±0.3°
Inclination:
Measuring range 4 x 90°
Resolution 0.1°
Accuracy 0.2°
Appropriate batteries:
3 pieces 155050.0300 - LR6 / 1.5 V (AA) (included in scope of delivery).
