Features

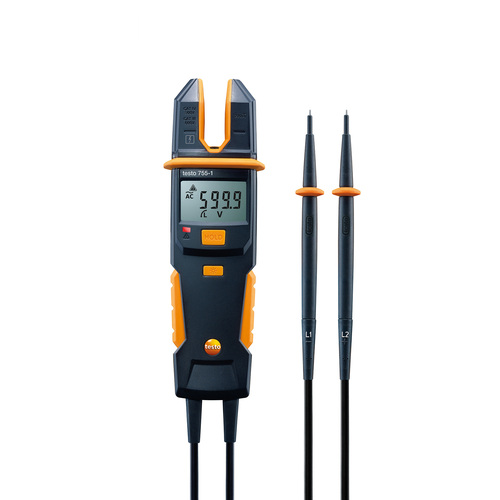

- This is a fork tester that can measure current, voltage, resistance, and continuity.
- This single unit can perform voltage measurements on electrical circuits and voltage systems, check the voltage side of single-phase voltages, perform voltage activation/deactivation tests, measure current and current consumption, and perform continuity tests.
- Automatically switches between voltage, current, resistance and continuity without the need to press any buttons.
- Acoustic noise occurs at AC50V or above and DC120V or above.
Applications
- For electrical maintenance equipment.
Specifications in detail
Battery: 2 x AAA
Package contents: Main unit, dry cell with
LED light AC
current (A): 200
DC voltage (V): 600
AC voltage (V): 600
Resistance (Ω): 100K
Detection method: Average value rectification (MEAN)
Power supply (V): 2 x AAA batteries (included)
Width (mm): 62
Depth (mm): 40
Height (mm): 199
Power supply: 2 x AAA batteries (included)
Accuracy: ±(3%rdg+3digit)
Continuity test (Ω): 30 or less
Resistance (kΩ): 30-100
Voltage (AC/DC) (V): 6-600
AC current (40-70Hz) (A): 200
Maximum measurement conductor diameter (mm): 15
Maximum display (count): 4000
TESTO TESTO755-1
