Thông tin sản phẩm

Tensile strength (mm): 122.6N/25
Core diameter: 3 inches (76mm)
UL510FR, UL temperature rating 200℃
Elongation: 50%
Color: Brown
Width (mm) ): 13
Length (m): 20
Thickness (mm): 0.05
Tape cutting conditions: cutter required
Adhesive strength (N/10mm): 2.12
Adhesive strength ( N/25mm): 5.3
Tensile strength (N/10mm): 2.16
Tensile strength (N/25mm): 5.39
Dielectric breakdown strength (kV/mm): 7
Paper tube size (mm): Plastic lead 76
Writable: Oil-based pens are allowed
Maximum tape outer diameter (mm): 155

TERAOKA 650S-25-13X20

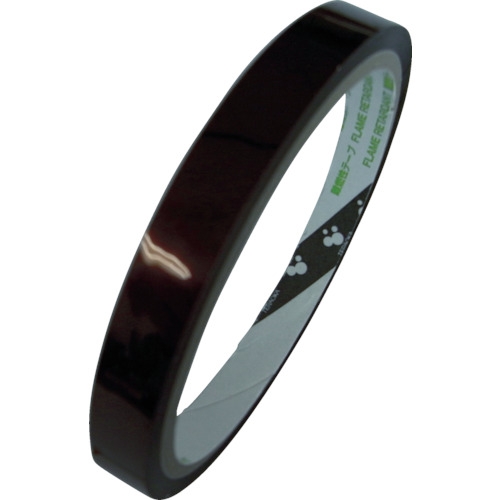

TERAOKA Việt Nam | TERAOKA Kapton (R) Adhesive Tape No. 650S MW2613965

Thương hiệu: TERAOKA
Còn hàng
Liên hệ
  • Excellent heat resistance and solder resistance.
  • It has excellent high temperature resistance and exhibits excellent performance in a wide range of operating temperatures from low to high temperatures.
  • Silicone-based adhesives have the property of not leaving any adhesive residue even after re-peeling.
  • It is a UL standard certified product. (File No. E56086) Flame retardant UL510 Flame retardant UL temperature rating 200℃
  • For masking high-temperature drying paint and solder plating .
  • For splicing heat-resistant films and TAB (printed circuit boards).
  • For heat-resistant process transportation of parts.

TERAOKA 650S-25-13X20

Xem thêm

Thông tin sản phẩm

Tensile strength (mm): 122.6N/25
Core diameter: 3 inches (76mm)
UL510FR, UL temperature rating 200℃
Elongation: 50%
Color: Brown
Width (mm) ): 13
Length (m): 20
Thickness (mm): 0.05
Tape cutting conditions: cutter required
Adhesive strength (N/10mm): 2.12
Adhesive strength ( N/25mm): 5.3
Tensile strength (N/10mm): 2.16
Tensile strength (N/25mm): 5.39
Dielectric breakdown strength (kV/mm): 7
Paper tube size (mm): Plastic lead 76
Writable: Oil-based pens are allowed
Maximum tape outer diameter (mm): 155

TERAOKA 650S-25-13X20
