- It is equipped with a guide slide mechanism that allows cutting up to approximately three sizes larger.
- By sliding it towards you, it becomes stable when cutting sharp angles of less than 45° or when starting to cut square lumber.
- It uses a click mechanism that locks into place at the three main angles of 45°, 90°, and 135°.
- Anti-slip rubber is used on the pressure and guide parts.
- It can also be used upside down.
- This is a high-rigidity aluminum pipe material that is resistant to impact and does not bend easily.
- The stopper is 9mm thick and holds the material firmly in place.
- A new scale has been adopted that is easy to see and adjust.
- It is equipped with a waste wood attachment function.

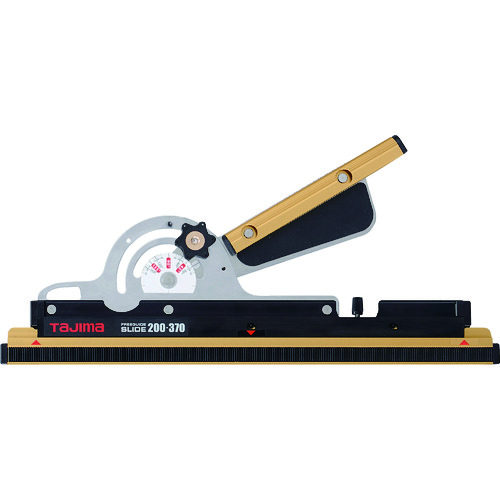

- Angle cutting ruler for circular saws.
Specifications in detail
New scale that is easy to see and adjust
Length: 200mm to 370mm
Scale angle: 15° to 165°
Effective cutting length: 200mm to 370mm
Total length (mm): 350
Width(mm):253
Thickness(mm):20
Nominal size (mm): 200 to 370
Effective cutting length (mm): 200 to 370
Angle accuracy: Within ±0.7 mm at 200 mm
Scale: With both angle and gradient scales
TAJIMA FG-SLD2037
