Features
- The wind elevation angle can be easily changed using a lever.
- It has four casters for easy mobility.
- This is a low noise type.
- It provides ventilation, circulation, and is extremely effective as a way to beat the heat.
- The wind direction can be adjusted by 180° in the elevation direction.
Applications
- Supply, ventilation and circulation of cool air in large factories.
- Blowing cool air in gymnasiums, gyms, etc.
- Air circulation, and ventilation in large spaces.
- For ventilation in large environments such as warehouses.
Specifications in detail
Power cord length: 7.8m (with plug)
50/60Hz compatible
power supply (V): single phase 100
Power consumption (W) 50Hz: 120
Power consumption (W) 60Hz: 180
Air volume (m3/min) 50Hz: 140
Air volume (m3/min) 60Hz: 176
Compatible duct diameter (mm): No compatible duct
Noise level (dB(A)) 50/60Hz: 53.5/58
Blade diameter (mm): 500
Number of fan blades (pieces): 4
Standard power consumption fee (50 Hz): 3.72/h
Standard power consumption charge (60Hz): 5.58/h
Frequency (Hz): 50/60
Output (kW) (50/60Hz): 0.2/0.2
Maximum air volume (m3)/min (50/60Hz): 140/176
Width (mm): 831
Depth (mm): 645
Height (mm): 1014
Power cord length (m): 7.8
Number of poles (P): 6
Protection device: Built-in thermal protector

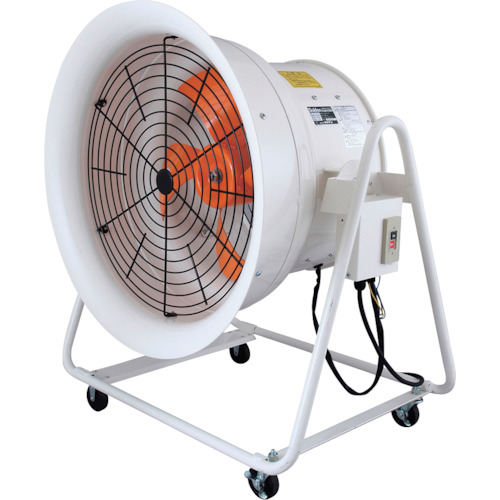

SUIDEN SJF-504A-1
