Features
- Equipped with a resin bell mouth that smooths the air flow, achieving efficient ventilation.
Applications
- Prevents oxygen deficiency and suffocation accidents.
Specifications in detail
Affordable, safe, sturdy, high-performance model Aluminum blade specifications
Power supply (V): Single phase 100
Power consumption (W) 50Hz: 230
Power consumption (W) 60Hz: 310
Air volume (m3)/min) 50Hz: 35
Air volume (m3)/min) 60Hz: 40
Compatible duct diameter (mm): 280
Noise level (dB(A)) 50/60Hz: 80.8/83.0
Blade diameter (mm):
250 Number of fan blades (pieces): 6
Standard power consumption charge (50Hz): 7.13
Standard power consumption charge (60Hz): 9.61
Frequency (Hz): Compatible with 50/60Hz
Maximum air volume (m3/min) (50/60Hz): 35/40
External dimensions (mm) Height: 393
External dimensions (mm) Depth: 307
External dimensions (mm) Width: 360
Power consumption (W) (50/60Hz): 230/310

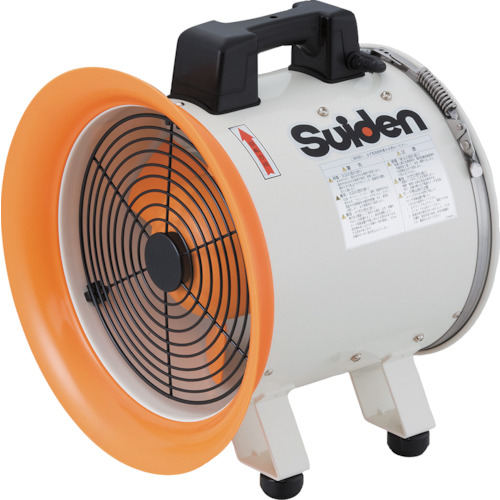

SUIDEN SJF-250RS-1A
