Features
- Equipped with a resin bell mouth that smooths the air flow, achieving efficient ventilation.
Applications
- Prevents oxygen deficiency and suffocation accidents.
Specifications in detail
Affordable, safe, sturdy, high-performance model Aluminum blade specifications
Power supply (V): Single phase 100
Power consumption (W) 50Hz: 145
Power consumption (W) 60Hz: 200
Air volume (m3/min) 50Hz: 20
Air volume (m3/min) 60Hz: 24
Compatible duct diameter (mm): 230
Noise level (dB(A)) 50/60Hz: 76.4/80.1
Blade diameter (mm):
200 Number of fan blades (pieces): 6
Standard power consumption charge (50Hz): 4.495
Standard power consumption charge (60Hz): 6.2
Frequency (Hz): Compatible with 50/60Hz
Maximum air volume (m3/min) (50/60Hz): 35/40
External dimensions (mm) Width: 360
External dimensions (mm) Height: 393
External dimensions (mm) Depth: 307
Power consumption (W) (50/60Hz): 145/200

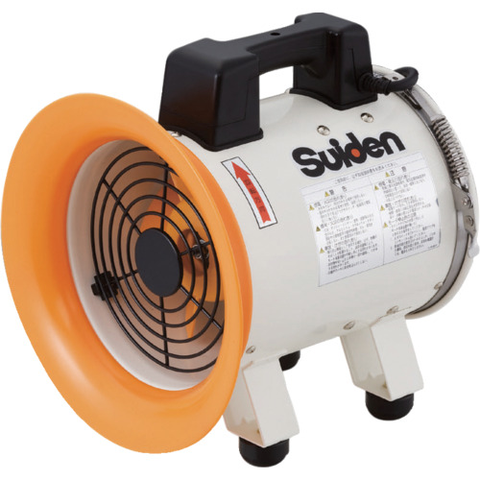

SUIDEN SJF-200RS-1A
