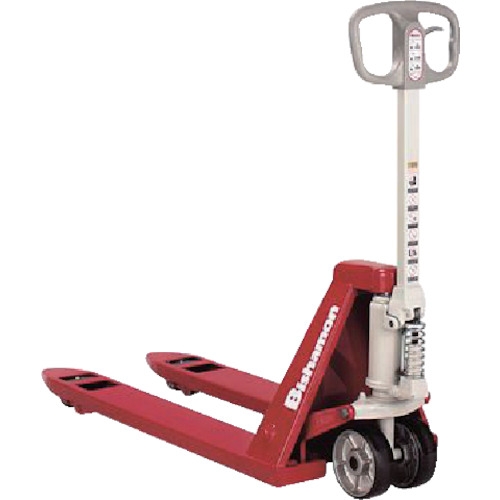

Sugiyasu Việt Nam | Bishamon hand pallet truck standard type uniform load 2500kg MW1132603

Thương hiệu: Sugiyasu

Liên hệ

The neutral mechanism allows easy steering in any direction even under load.
High tensile steel plate with excellent strength.
Equipped with aluminum wheels, making operation even easier.
We use environmentally friendly lead-free paint.
Bogie wheels can be installed as an option. Suitable for small grooves and over steps. (Standard equipment for 3t)

Uniform load (kg): 2500
Fork height Height (mm) min: 80
Fork height (mm) max: 200

Xem thêm

Các thương hiệu bán chạy

TRUSCO

CKD

LOBSTER

HATAYA

HAMMER CASTER

FACOM

PISCO

STEINEL

BAHCO

YAMADA

Thông tin sản phẩm

Uniform load (kg): 2500
Minimum fork height (mm): 80
Maximum fork height (mm): 200
Fork length (mm): 810
Fork width (mm): 153
Fork spacing (mm): 214
Brakes: None
Overall width (mm): 520
Overall height (mm): 1193
Dimension A (mm): 525
Dimension B (mm): 675
Steering wheel: Urethane wheel, diameter 175 x width 63 mm
Road wheel: Urethane wheel, diameter 83 x width 100 mm (single wheel)
Fork width (mm)
Fork spacing (mm)
Fork length (mm)
