Features
- A multipurpose reversible jaw puller.
- The multipurpose SKF reversible jaw pullers TMMR series are designed for pulling inner and outer bearing rings as well as other components such as gears and pulleys.
- The puller's two arms can be mounted with the jaws facing inward or outward, making it a versatile and essential tool for any machine shop.
Purpose
- For pulling out inner and outer rings of bearings.
- For pulling out parts such as gears and pulleys.
Specifications in detail
Self-locking arms for easy grip width adjustment
A versatile tool essential for repair shops for pulling inner and outer rings
Zinc passivated arms and beams for increased corrosion resistance and easy cleaning No
permanent deformation of the puller arms even with maximum pulling force Optional
accessories increase the versatility of the puller
Maximum torque of the push screw (Nm): 115
Suitable bearing outer diameter for pulling (mm): 68-164
Suitable bearing inner diameter for pulling (mm): 114-163
Claw reach (mm): 143
Claw tip thickness (mm): 7
Set contents (pieces): 1
Proof load (kN): 50
Push screw Hex size (mm): 22
^

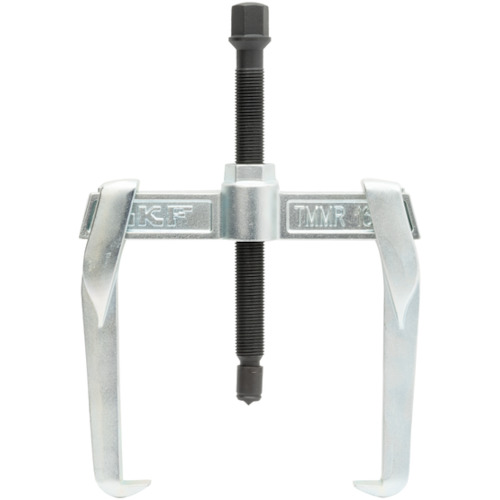

SKF TMMR 160F
