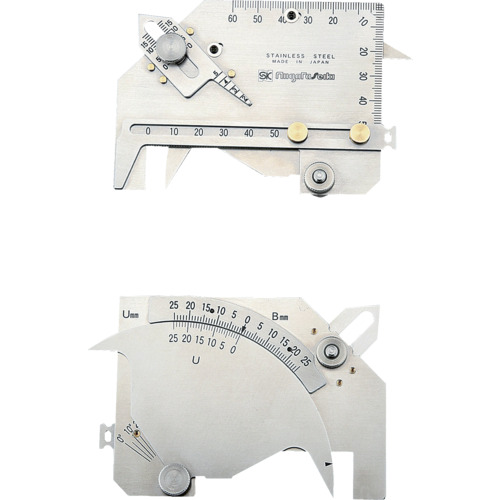

- New functions have been added to measure plate thickness, weld bead width, outer diameter of round objects, and bulges of pressure welds on rebars, etc.
- In response to the new standards set forth by the Ministry of Land, Infrastructure, Transport and Tourism, the bead spanning width has been increased to 53 mm when measuring the difference in level between butt welds, widening the measurement range for thick material welding.
- The bevel angle measurement range is 0-70°.
- Comes with a vinyl case for easy portability.
- For measuring excess welds, fillet size and angle, and pressure weld bulge
Specifications in detail
Length measurement accuracy (mm): ±0.6
Angle measurement error (°): ±2
Gap measurement error (mm): ±0.6
Throat thickness measuring instrument error (mm): ±0.6
Body scale graduations (mm): 50, 60
Extra height (mm): 25
Fillet leg length (mm): 25
Fillet throat thickness (mm): 15
Undercut depth (mm): 25
Bevel angle (°): 0-70 (minimum reading 5)
Length measurement error (mm): ±0.6
Measurable groove angle (°): 0-70 (minimum reading 5)
SK WGU-8M
