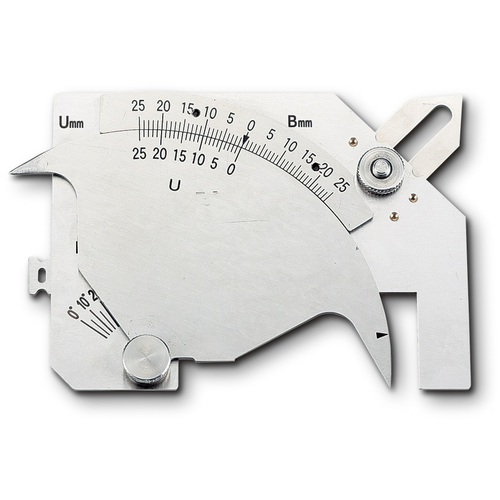

SK Việt Nam | SK welding gauge (outer diameter of bulge after pressure welding/bead width/undercut/displacement/leg length/fillet throat thickness) MW3776816

SK Việt Nam | SK welding gauge (outer diameter of bulge after pressure welding/bead width/undercut/displacement/leg length/fillet throat thickness) MW3776816

Thông tin sản phẩm

Length measurement accuracy (mm): ±0.6
Angle measurement error (°): ±2
Gap measurement error (mm): ±0.6
Throat thickness measuring instrument error (mm): ±0.6
Body scale graduations (mm): 60
Extra height (mm): 25
Fillet leg length (mm): 25
Fillet throat thickness (mm): 15
Undercut depth (mm): 25
Bevel angle (°): 0-70 (minimum reading 5)
Length measurement error (mm): ±0.6
Angle measurement error (°): ±2
Measurable groove angle (°): 0-70 (minimum reading 5)

SK WGU-9M

SK Việt Nam | SK welding gauge (outer diameter of bulge after pressure welding/bead width/undercut/displacement/leg length/fillet throat thickness) MW3776816

Thương hiệu: SK

Liên hệ

Đặc tính

Made of stainless steel, it is rust-resistant and robust.
Undercut measurement is possible.
The most frequently used rebar diameters (Φ19, 22, 25, 29, 35) are indicated on the slider.
Pass/fail results can be quickly determined by reading the intersection with the inspection regulation magnification scale (1/4, 1.0 to 1.6 times) marked on the...

Xem thêm

Các thương hiệu bán chạy

Thông tin sản phẩm

Length measurement accuracy (mm): ±0.6
Angle measurement error (°): ±2
Gap measurement error (mm): ±0.6
Throat thickness measuring instrument error (mm): ±0.6
Body scale graduations (mm): 60
Extra height (mm): 25
Fillet leg length (mm): 25
Fillet throat thickness (mm): 15
Undercut depth (mm): 25
Bevel angle (°): 0-70 (minimum reading 5)
Length measurement error (mm): ±0.6
Angle measurement error (°): ±2
Measurable groove angle (°): 0-70 (minimum reading 5)

SK WGU-9M
