Features
- This is a block gauge set with excellent cost performance.
- Equivalent to JIS Class 1.
- It is equivalent to first class.
Applications
- As a standard gauge for general measurements and machining.
Specifications in detail
Cross-sectional dimension: 10mm or less 30(0～-0.3)×9(-0.05～0.2)mm/Over 10mm and 100mm or less 35(0～-0.3)×9(-0.05～0.2)mmCross
-sectional dimension 1(mm): 30{0-(-0.3)}x9{(-0.05)-(-0.2)}
Cross-sectional dimension 2(mm): 35{0-(-0.3)}x9{(-0.05)-(-0.2)}
Dimension tolerance 1(mm): ±0.20(Difference width 0.16)
Dimension tolerance 2(mm): ± 0.30 (0.16)
Dimensional tolerance 3 (mm): ±0.40 (0.18)
Dimensional tolerance 4 (mm): ±0.50 (0.18)
Dimensional tolerance 5 (mm): ±0.60 (0.20)
Number of sets (pieces): 76
Manufacturer code: 00150802
Grade (class): Grade 1 equivalent
Cross-sectional dimensions (mm): 10mm or less 30 (0 to -0.3) x 9 (-0.05 to 0.2) mm / Over 10mm and up to 100mm 35 (0 to -0.3) x 9 (-0.05 to 0.2)
Thermal expansion coefficient: 11.5x10-6 power/K

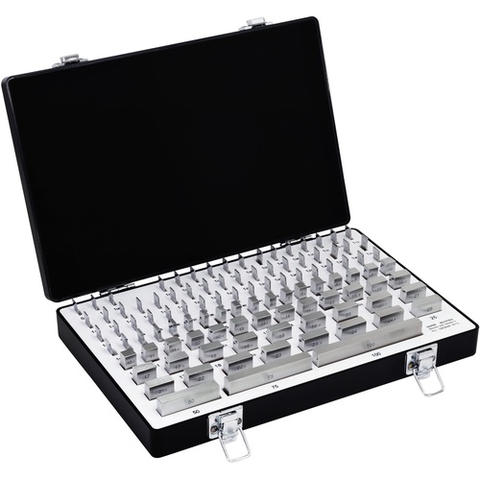

SK GBS1-76
