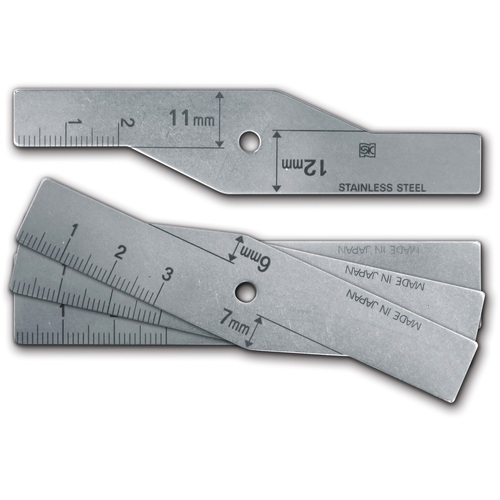

- Limit gauge for measuring root spacing and butt joint root spacing.
- Set of 4 gauge leaves.
- It can also be used as a gap gauge.
- Comes with a plastic case.
- Comes with a ball chain.
- For measuring root spacing and butt joint root spacing.
- For measuring the groove angle (inside) of T-joints, the groove angle (inside angle) of butt joints, the leg length (height) of fillet, and throat thickness.
Specifications in detail
Instrument error: ±0.1mm
Length measurement accuracy difference (mm): ±0.1
Angle measurement error (°): -
Body scale (mm): 20 on the front, 30 on the back
Extra height (mm): 2-9
Fillet leg length (mm): 2-9
Fillet throat thickness (mm): -
Root Spacing (mm): 11-18
Bevel angle (°): -
Measurable leg length (mm): 2 to 9 (1 mm pitch)
Measurable root interval (mm): 11 to 18 (1 mm pitch)
Number of pieces: 4
Instrument error (mm): ±0.1
SK WRL1118
