- Fine adjustment type for easy positioning. (Fine adjustment range: 0.5mm)
- It is convenient because it can be installed directly in narrow spaces and on machines.

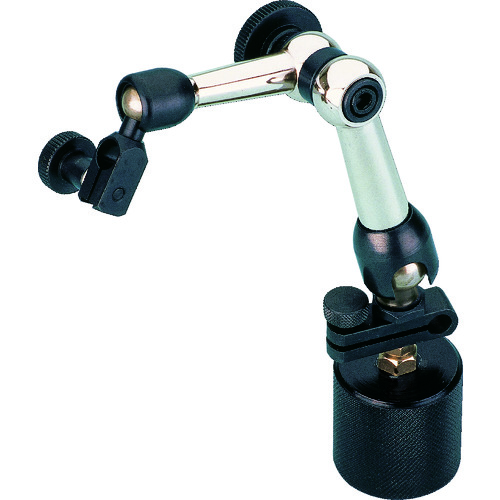

- Mini lock arm type.
- The mechanical locking mechanism makes it easy to set and tighten.
- Uses Alnico magnets, making it resistant to high temperatures and has excellent mechanical strength.
- Dovetail mounting is possible.
- As a measuring and holding tool for dial gauges and dial indicators (lever type)
Specifications in detail
Measuring instrument mounting: 8mm hole, with dovetail groove
Surface magnetic flux density (mT): Max. 90
Adsorption power (N): 200
Stem mounting (mm): φ8
Lug hole installation (mm): -
Arm mounting screw: M5xP0.8
Dovetail: Yes
Magnet width (mm): 35
Magnet depth (mm): 35
Magnet height (mm): 32
Arm mounting screw: M5 x 0.8
Measuring instrument mounting hole: 8mm
SK MB-6
