- A wide range of angles can be measured before and after welding.
- This allows direct measurement without interfering with the swelling after pressure welding or the build-up after welding.
- It also supports measuring the inside and outside angles of sheet metal bending etc.
- The surface is silver finished.
- It has a non-reflective silver finish.
- It is robust, lightweight and easy to carry (plastic case included).
- For measuring pressure welds, bending butt joints, flanges, bending sheet metal, welded joints, and plate clamping angles
- Flange and sheet metal bending measurement
- Measurement of angles at welded joints and plate clamp angles
Specifications in detail
Measurement of inclination after angle stud of joint: 0 to 180°
Minimum reading (°): 1
Angle measurement accuracy(°): 0.5
Tilt of joint after welding angle stud (°): 0-180
Butt joint, pressure welded bend angle (°): 0-90
Diameter(mm):90
Rod length (mm): 90
Rod thickness (mm): 1.5
Instrument error (minutes): 30
Total length (mm): 105
Protractor thickness (mm): 14
Bevel angle: 30 to 130° (minimum reading 1°)

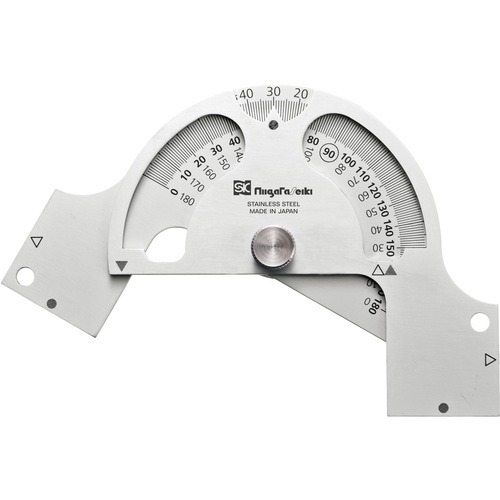

SK AP-130
